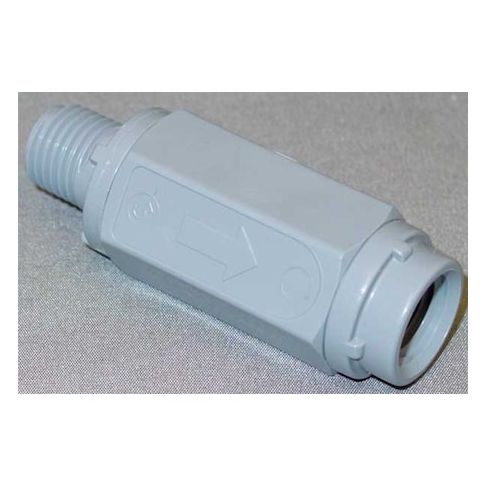

1/4" MNPT x FNPT Gray PVC Ball Cone Spring Check Valve MPN:PVC CHK 426-4M4F-F
Free Shipping
In Stock
This 1/4in MNPT x FNPT Gray PVC Ball Cone Spring Check Valve is a versatile and reliable solution for various applications. Suitable for use in both horizontal and vertical orientations, it prevents backflow and ensures a one-way flow of fluids. Its PVC body and stainless steel spring provide excellent durability and resistance to corrosion, while the Viton seal ensures a tight seal. With a cracking pressure of 1 psi and a maximum water pressure of 125 psi, it can handle a range of fluid pressures. Ideal for use in water treatment, irrigation, and plumbing systems, this valve provides a reliable and efficient solution.
Top product features:
- It has a single flow design for unidirectional fluid flow.
- It uses a ball cone mechanism and body design for inline installation.
- It includes a spring-loaded check valve for automatic shut-off.
Top product applications:
- Drainback systems for water heaters and water storage tanks
- Cooling systems for compressors and air conditioning units
- Pumping systems for irrigation and water circulation in industrial settings
ZORO SELECT 426 series ball cone spring check valve is an inline, single-flow check valve configured for one-direction flow and reverse-flow checking. This inline check valve has a PVC body with a ball check mechanism and is rated for use with compatible chemical media. The 1/4 in valve size and MNPT x FNPT threaded connections are specified for horizontal or vertical mounting positions.
Key Features:
- Ball cone spring check valve with inline body design
- PVC body and seat material
- Ball check mechanism with stainless steel mechanism material
- 1/4 in connection size on both sides
- MNPT x FNPT connections with side 1 male NPT and side 2 female NPT
- 1 psi cracking pressure
- 125 psi maximum operating pressure and 125 psi maximum water pressure
- Temperature range: -20 degrees F to 140 degrees F
- Single-flow design with full flow
- Horizontal or vertical mounting orientation
- FKM/Viton and PTFE seal materials
- Hastelloy spring material
- stainless steel spring material for check valve components
- Dimensions: 2.99 in overall length, 1 in overall height, 0.88 in width, 1 in hex size
- NSF 42
Additional Information
- Country of Origin: CA
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.06
