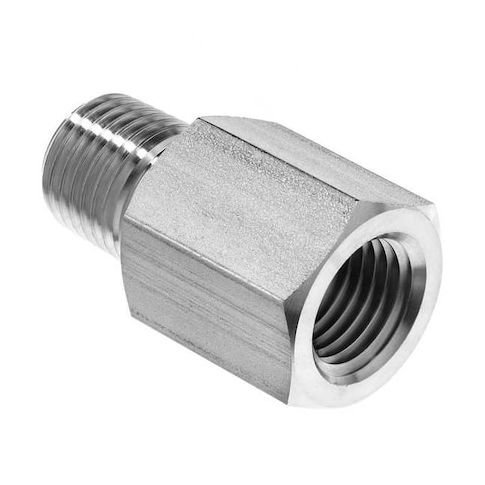

316 Stainless Steel Adapter, Female BSPT x Male NPT, 1/8 in, 6, 500 psi MPN:ZUSA-PF-8764

• The ZORO SELECT - ZUSA-PF-8764 is a stainless steel instrumentation pipe fitting designed to connect small-diameter tubing and piping in instrumentation, sampling, and control systems.

  Made from grade 316 stainless steel with BSPT and NPT connections.

  Its rated for operation up to 6,500 psi within specified conditions, supporting precise measurement and process control in various applications involving air, natural gas, oil, potable water, or steam.

  Key Features:

  • - Material Grade: 316 stainless steel, suitable for corrosive environments and high-pressure applications.
  • - Connection Types: BSPT (Side A) female thread
  • NPT (Side B) male thread, compatible with standard fittings.
  • - Nominal Pipe Sizes: 1/8 in for both Side A and Side B connections.
  • - Threading: Side A has 28 threads per inch
  • Side B has 27 threads per inch, matching common industry standards.
  • - Overall Length: 1 1/16 inches.
  • - Includes pre-applied thread sealant: No.
  • - Includes seal: No.
  • - Hex Size: 9/16 inches, providing standard wrenching compatibility.
  • - Standards: ANSI B31.1, ensuring compliance with recognized piping system specifications.
