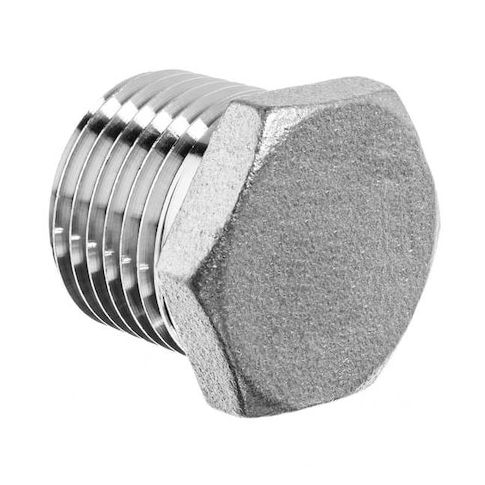

Plug, Stainless Steel, Threaded 1/2 in MPN:ZUSA-PF-7913

The ZORO SELECT - ZUSA-PF-7913 is a stainless steel hex head plug with a male NPT connection. It is designed to close off the end of a pipe, fitting, or port and provides a pressure-tight seal in plumbing, hydraulic, pneumatic, and industrial piping systems. Constructed from 304 stainless steel, it offers corrosion and temperature resistance, making it suitable for various applications requiring durable sealing solutions. The plug's design allows tightening and removal with a wrench, and it is rated for maximum pressures of up to 7,200 psi with an external diameter of ¾ inch.

Key Features:

• - Connection Type: Male NPT thread suitable for threaded pipe openings.
• - Material Grade: 304 Stainless Steel for corrosion and temperature resistance.
• - Max. Steam Pressure: 6,930 psi, indicating its rated steam-handling capacity.
• - Maximum Operating Pressure: 7,200 psi, the highest internal pressure sustained during operation.
• - Nominal Pipe Size: ½ inch, aligning with standard pipe fittings.
• - Outside Diameter: ¾ inch, measuring the external width of the fitting.
• - Overall Length: 15/16 inch, the total length from end to end.
• - Fit Standards: Complies with ASME B1.20.1, ANSI/ASME B31.1, and B31.3 for dimensional and performance specifications.
