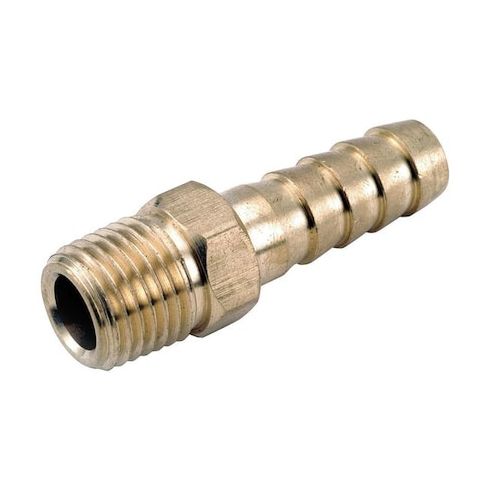

Barbed Hose Fitting, 5/16" Tube OD, 3/8 in Pipe Size, Brass MPN:707001-0506
The ZORO SELECT - 707001-0506 Barbed Hose Fitting is a reliable and durable solution for industrial and commercial applications. Crafted from high-quality brass, this fitting ensures a rigid connection that minimizes unwanted movement. With a maximum pressure rating of 1000 psi and a temperature range of -65°F to 250°F, it can withstand demanding conditions. Suitable for use in various industries, including manufacturing, agriculture, and construction, this fitting provides a secure connection for hoses and pipes. Its reusable design and ease of installation make it a valuable addition to any operation.
Top product features:
- Crafted from brass, it is engineered for a rigid connection that helps minimize unwanted movement.
- The fitting features a male hose barb connection type on both sides, measuring 5/16 in on one end and 3/8 in on the other end.
- Meets all standards of quality and safety as outlined by the NSF 61 ANNEX G.
Top product applications:
- Industrial Irrigation Systems
- Commercial Water Supply Lines
- Automotive Cooling Systems
The ZORO SELECT - 707001-0506 is a straight-shaped Barbed Hose Fitting intended for industrial or commercial applications. Crafted from brass, it is engineered for a rigid connection that helps minimize unwanted movement. The fitting features a male hose barb connection type on both sides, measuring 5/16 in on one end and 3/8 in on the other end. Please note that this fitting does not include a shut-off mechanism and is reusable. It meets all standards of quality and safety as outlined by the NSF 61 ANNEX G.
Key Features:
- Barb Size: 5/16 in – this refers to the area of the fitting that connects to the hose.
- Hex Head Size: 11/16 in – this indicates the size of the hexagonal head of the fitting. An appropriate wrench or socket is needed to tighten or loosen the fitting.
- Max. Pressure: 1000 psi – this is the maximum internal operating pressure that the fitting is rated for.
- Pipe Size: 3/8 in – this represents the nominal diameter of the fitting's pipe connection.
- Temperature Range: -65 Degrees to 250 Degrees F – the fitting is rated for operation within this temperature range.
- Thread Size: 3/8"-18 – shows the size of the threading on the fitting.
- Tube Size: 5/16” – this indicates the fitting's nominal hose connection diameter.
- Material Grade: CA2745 – identifies the specific alloy/grade of the brass material used.
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 0.90
- Package Height: 0.90
- Package Weight: 0.05
