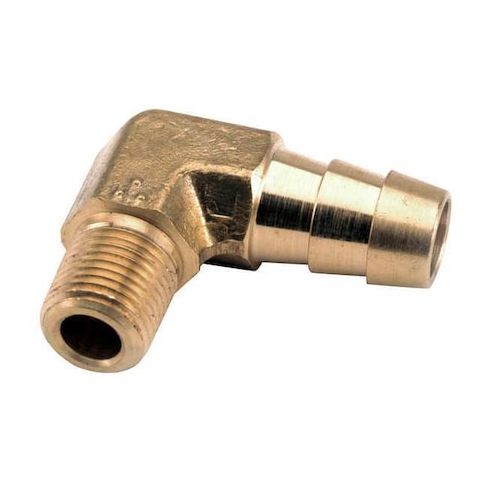

Barbed Hose Fitting, 3/8" Tube OD, 1/4 in Pipe Size, Brass MPN:707020-0604
This 90-degree barbed hose fitting is designed for use in challenging conditions, providing a precise change in direction for hoses. Made from durable brass, it's rated for a maximum internal working pressure of 1000 psi and can be detached and reattached to different hoses. The fitting features a 3/8 in barb size and includes both A and B male hose connections. Ideal for applications such as irrigation systems, pool equipment, and industrial hydraulic systems, this fitting ensures optimal durability and effectiveness. Its temperature range of -65 to 250 Degrees F makes it suitable for a variety of environments.
Top product features:
- The fitting is rated for a maximum internal working pressure of 1000 psi.
- The fitting provides a precise change in direction of the hose it's attached to.
- The barb keeps the hose attached to the fitting by a raised ridge.
Top product applications:
- High-pressure water supply systems
- Pneumatic systems for industrial equipment
- Hydraulic systems for heavy machinery
The Zoro Select - 707020-0604 is a barbed hose fitting designed for use in challenging conditions. Predominantly made of brass, this 90-degree elbow shape provides a precise change in direction of the hose it's attached to. The fitting is rated for a maximum internal working pressure of 1000 psi and can be detached and reattached to different hoses when required.
Key Features:
- Barb Size of 3/8 in: This size refers to the barb, or the raised ridge, that keeps the hose attached to the fitting.
- Male Hose Fitting: This fitting includes both A and B male hose connections. The A connection utilizes a hose barb type and measures 3/8 in. The B connection is of NPT type, measuring 1/4 in.
- No Shut Off: The fitting does not include a shut-off valve.
- Material Grade: CA2745 - This brass grade ensures optimal durability and effectiveness.
- Max. Pressure: 1000 psi - This is the maximum internal working pressure rating for the fitting.
- Standards: NSF 61 Annex G - The fitting is manufactured to comply with the NSF 61 Annex G standard.
- Temp. Range: -65 to 250 Degrees F - The fitting is rated to operate within this temperature range.
- Thread Type and Size: 1/4"-18 NPT - This specification defines the type and size of the fitting's thread.
- Tube Size: 3/8" - This size points to the fitting's compatible hose inner diameter.
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 1.50
- Package Height: 0.70
- Package Weight: 0.05
