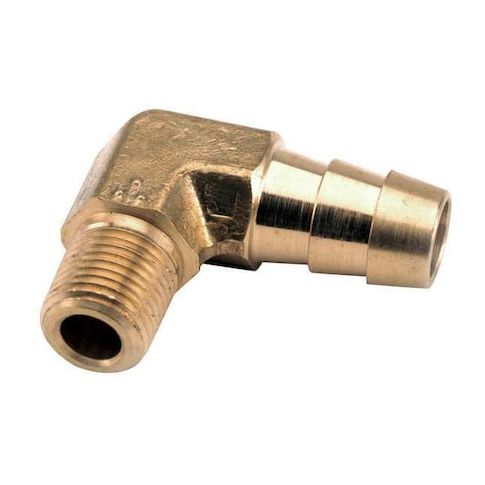

Barbed Hose Fitting, 1/2" Tube OD, 3/8 in Pipe Size, Brass MPN:707020-0806
The ZORO SELECT - 707020-0806 Barbed Hose Fitting is a versatile industrial-grade tool designed for heavy use. With a 90-degree elbow configuration, it enables the connection, routing, or termination of hose lines in various directions. Crafted from durable CA2745 Grade Brass, this fitting ensures robust performance and can withstand a wide temperature range of -65 to 250 degrees Fahrenheit. Its maximum operating pressure of 750 psi makes it suitable for various applications, including industrial, commercial, and residential uses. This reusable fitting accommodates hoses with an internal diameter of 1/2 inch, making it an ideal solution for various industries and projects.
Top product features:
- Elbow fitting style, designed for the 90 degrees alteration in flow direction.
- Made primarily from Brass (Material Grade: CA2745), ensuring durability and tolerance to heavy weight.
- Rated for a maximum operating pressure up to 750 psi.
Top product applications:
- Marine applications due to its resistance to corrosion and ability to withstand high pressures.
- Industrial settings where hoses need to be routed or terminated in different directions.
- Automotive applications where a 90-degree elbow fitting is required for hoses.
The ZORO SELECT - 707020-0806 is a Barbed Hose Fitting component falling under the category of Push On Hose Fittings. It features a 90 degrees elbow configuration which makes it possible to connect, route or terminate hose lines in different directions. This industrial-grade tool is crafted from durable CA2745 Grade Brass, rendering it robust and suited for heavy use. The fitting is sturdy and does not come with a shut off feature. It has a nominal connection diameter or thread size of 3/8 inches, suitable for hoses with an internal diameter of 1/2 inch. This barbed hose fitting is designed to be reusable and accommodates a wide temperature range spanning from -65 to 250 degrees Fahrenheit. Furthermore, it is rated for a maximum operating pressure up to 750 psi.
Key Features:
- Elbow fitting style, designed for the 90 degrees alteration in flow direction.
- Made primarily from Brass (Material Grade: CA2745), ensuring durability and tolerance to heavy weight.
- Features a male Hose Barb x NPT fitting connection type.
- Fitting Size: 1/2 inch x 3/8 inch, which is appropriate for hoses with a 1/2 inch inner diameter.
- Wide operating temperature range between -65 and 250 degrees Fahrenheit.
- Rated for a maximum operating pressure up to 750 psi.
- Thread size of 3/8"-18 with an NPT type.
- Adheres to NSF 61 Annex G industry standard.
- This product is designed to be reusable.
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 1.50
- Package Height: 1.00
- Package Weight: 0.11
