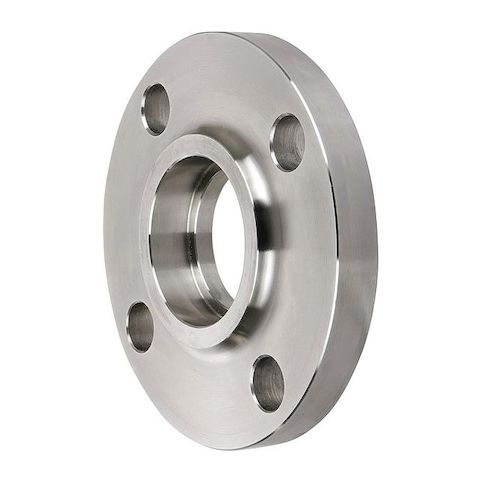

4" Socket Weld SS Socket Weld Flange Sch 40 MPN:4381004070
The ZORO SELECT 4381004070 is a high-quality stainless steel socket weld flange designed for use in small-diameter, high-pressure piping systems. Made from forged 304/304L stainless steel, this flange provides corrosion resistance and strength, ensuring reliable sealing and good alignment. Its recessed socket design allows for easy pipe end insertion and secure connection via fillet weld. Suitable for applications requiring frequent sealing and alignment, such as chemical processing, power generation, and oil and gas industries. Its durable construction and corrosion-resistant properties make it an ideal choice for demanding environments, ensuring long-lasting performance and minimal maintenance.
Top product features:
- Made from forged 304/304L stainless steel, ensuring durability and corrosion resistance.
- Features a recessed socket design that allows the pipe end to be inserted and secured by a fillet weld around the hub.
- Has a bolt circle diameter of 7 7/8 inches with 8 bolt holes, each 7/8 inches in diameter.
Top product applications:
- High-pressure piping systems in chemical processing plants
- Applications requiring reliable sealing and good alignment in the oil and gas industry
- Small-diameter piping systems in food processing and pharmaceutical manufacturing
The ZORO SELECT 4381004070 is a stainless steel socket weld flange made from forged 304/304L stainless steel. It features a recessed socket design that allows the pipe end to be inserted and secured by a fillet weld around the hub, creating a pressure-tight connection suitable for small-diameter, high-pressure piping systems. Its construction provides corrosion resistance and strength, commonly used in applications requiring reliable sealing and good alignment, although it is less suited for frequent disassembly or larger sizes.
Key Features:
- - Made from forged 304/304L stainless steel, ensuring durability and corrosion resistance.
- - Designed as a socket weld flange with a recessed socket accepting a pipe end.
- - Bolt circle diameter of 7 7/8 inches with 8 bolt holes, each 7/8 inches in diameter.
- - Outside diameter of the flange is 10 inches, with a flange thickness of 1 1/4 inches.
- - Fitting class of 300, as specified.
- - Nominal pipe size of 4 inches, with overall length of 1 7/8 inches.
- - Connection surface is Raised Face, with standard standards ASTM-SA182 and ANSI B16.5.
- - Overall outside dimensions according to ASTM and ANSI standards.
- - Designed for a specific shape: Socket Weld Flange, compliant with standards ASTM-SA182 and ANSI B16.5.
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.80
- Package Width: 10.60
- Package Height: 5.10
- Package Weight: 23.83
