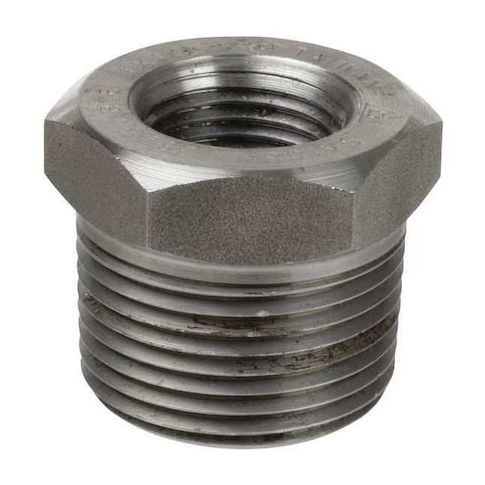

Hex Reducing Bushing, 1 in x 1/8 in, Male NPT x Female NPT, 316 Stainless Steel, Class 3000 MPN:4307001320
Connect different pipe sizes with ease using the ZORO SELECT stainless steel hex reducing bushing. Constructed from 316 stainless steel, this bushing is designed for corrosion and temperature resistance in industrial, commercial, and plumbing systems. Its male NPT and female NPT connections conform to ASME B1.20.1 standards, making it a reliable choice for applications where pressure and steam resistance are crucial. With a maximum pressure rating of 3000 psi and a maximum steam pressure rating of 2810 psi, this bushing is ideal for use in high-pressure systems, such as HVAC, chemical processing, and power generation.
Top product features:
- Material: 316 Stainless Steel, rated for corrosion and temperature resistance
- Shape: Hex Reducing Bushing, with a hexagonal outer profile for standard wrench tightening
- Connection Type: MNPT x FNPT, with male and female threaded ends conforming to ASME B1.20.1 standards
Top product applications:
- Industrial pipe connections in high-pressure systems
- Commercial plumbing systems requiring threaded connections
- Plumbing systems where a reduction in pipe size is necessary
The ZORO SELECT - 4307001320 is a stainless steel hex reducing bushing designed to connect different pipe sizes via threaded connections. It screws into a larger female-threaded opening and offers a smaller, male-threaded connection, designed to connect pipe sizes via threaded connections in industrial, commercial, and plumbing systems. Constructed from 316 stainless steel, rated for corrosion and temperature resistance within specified ranges.
Key Features:
- - Material: 316 Stainless Steel, rated for corrosion and temperature resistance
- - Shape: Hex Reducing Bushing, with a hexagonal outer profile for standard wrench tightening
- - Class: 3000, indicating the pressure-rating level
- - Connection Type: MNPT x FNPT, with male and female threaded ends conforming to ASME B1.20.1 standards
- - Nominal Pipe Size: 1 inch (Side A), 1/8 inch (Side B)
- - Fitting Schedule/Class: Class 3000
- - Gender: Fitting Side A is Male, Side B is Female
- - Pipe Fitting Material: 316 Stainless Steel
- - Rated for maximum pressure of 3000 psi at 100°F within specified temperature ranges
- - Rated for maximum steam pressure of 2810 psi at temperatures up to 350°F in accordance with standards
- - Hex Size: 1 3/8 inch across flats for wrench application
- - Standards: Threads conform to ASME B1.20.1, materials to ASTM A182, and dimension standards to ASME B16.11
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 1.80
- Package Height: 1.80
- Package Weight: 0.45
