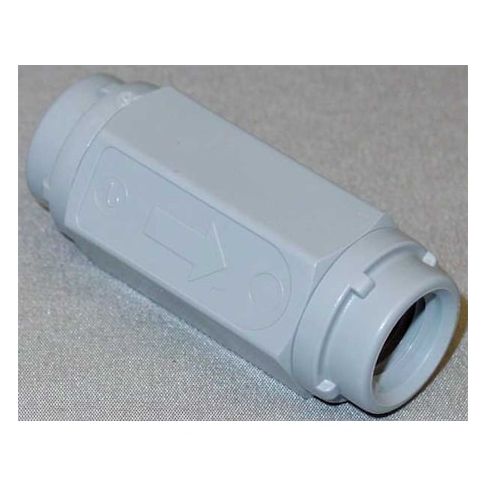

1/4" FNPT Gray PVC Ball Cone Spring Check Valve MPN:PVC CHK 426-4F4F-F
Free Shipping
In Stock
This 1/4in FNPT Gray PVC Ball Cone Spring Check Valve is a reliable and versatile solution for a variety of applications. Suitable for use in both horizontal and vertical orientations, it's ideal for water supply lines, irrigation systems, and other low-pressure fluid transfer systems. The valve's spring-loaded mechanism ensures secure shut-off and prevents backflow, while its Viton seal and stainless steel spring provide long-lasting durability. With a maximum temperature range of 140°F and a maximum water pressure of 125 psi, this valve is perfect for use in residential, commercial, and industrial settings where a compact and efficient check valve is required.
Top product features:
- Flow design is single
- Body design is inline ball cone
- Seal material is Viton
Top product applications:
- Water Supply Systems
- Steam Power Plants
- Industrial Process Control
ZORO SELECT Series 426 is an inline ball cone spring check valve for compatible chemical service applications. This PVC valve uses a spring-loaded ball mechanism to support one-way flow applications with spring-assisted closure when flow stops or reverses. It features a compact inline body with 1/4 in. FNPT female connections on both ends and can be mounted horizontally or vertically.
Key Features:
- Valve type: Ball cone spring check valve with single-flow inline design
- Body material: PVC
- Seat material: PVC
- Check mechanism: Ball
- Check mechanism material: Stainless steel
- Connection size and type: 1/4 in. FNPT x FNPT with female connections on both sides
- Cracking pressure: 1 psi
- Pressure rating: 125 psi maximum operating pressure
- 125 psi maximum water pressure
- Temperature range: -20 degrees F to 140 degrees F
- Seal materials: Viton, FKM, and PTFE
- Spring material: Hastelloy
- spring material for check valve: Stainless steel
- Full-flow configuration: Yes
- Dimensions: 2.99 in. overall length, 1 in. overall height, 1 in. width, 1 in. hex size
- Standard: NSF 42
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 2.00
- Package Height: 1.50
- Package Weight: 0.25
