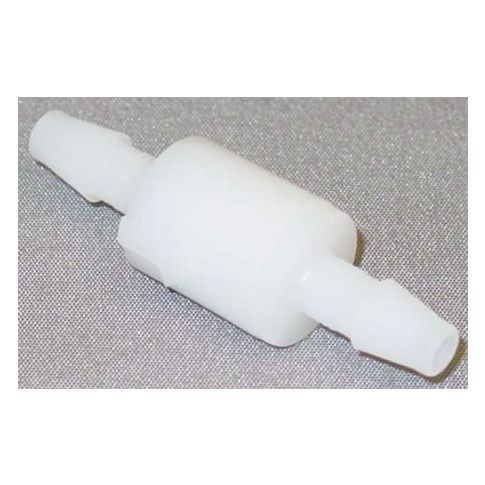

3/16" Barb Polypropylene Ball Cone Spring Check Valve MPN:PP CHK 695-3B3B-F
Free Shipping
In Stock
The 3/16in Barb Polypropylene Ball Cone Spring Check Valve from GoVets Select is a reliable and efficient solution for various applications. This inline check valve is designed for horizontal or vertical mounting and features a polypropylene body with a stainless steel spring for durability. With a cracking pressure of 1 psi, it allows for smooth flow while preventing backflow. Suitable for water and other fluids, it can withstand temperatures from -20°F to 140°F and pressures up to 125 psi. Ideal for use in residential, commercial, and industrial settings, this valve is perfect for plumbing, irrigation, and other fluid transfer systems.
Top product features:
- The valve has a single flow design.
- The valve body is made of polypropylene.
- The valve has a stainless steel spring.
Top product applications:
- Drainback Systems
- Water Treatment Systems
- Chemical Processing Systems
Zoro Select 695 series ball cone spring check valve with an inline body design and 3/16 in barb x barb connections. It is configured for one-direction flow control using a spring-loaded ball check mechanism. The valve features a polypropylene body and seat, a stainless steel check mechanism and spring, and FKM/Viton and PTFE sealing components. It is intended for use with compatible air and fluid media within the listed pressure and temperature specifications.
Key Features:
- Valve type: Ball cone spring check valve with inline body design
- Connection size: 3/16 in on both sides
- Connection type: Barb x barb
- Body material: Polypropylene
- Check mechanism: Ball with stainless steel mechanism and stainless steel spring
- Seal materials: FKM/Viton and PTFE
- Seat material: Polypropylene
- Cracking pressure: 1 psi
- Flow coefficient (Cv): 0.2
- Maximum operating pressure: 125 psi
- Operating temperature range: -20 degrees F to 140 degrees F
- Mounting orientation: Horizontal or vertical
- Full flow: Yes
- Overall length: 1.72 in
- Valve series: 695
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.04
