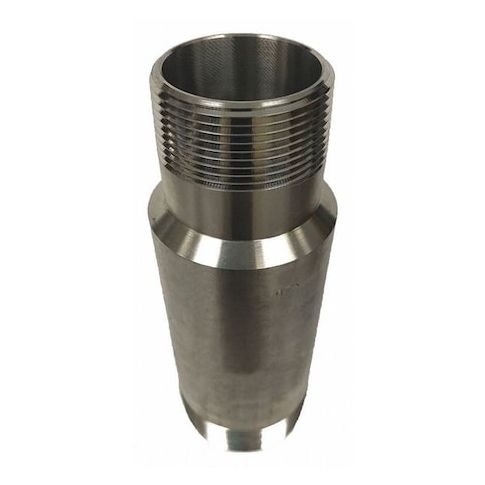

2" x 1-1/4" 316/316L Stainless Steel Swage Nipple Sch 80 MPN:3984833318

• The ZORO SELECT - 3984833318 is a stainless steel swage nipple rated for connecting dissimilar pipe sizes within plumbing, hydraulic, and process systems. It features male threads of two different diameters, compatible with pipes or fittings with matching thread sizes for reduction. Constructed from Grade 316/316L stainless steel, it provides corrosion resistance and handling of pressures up to 3000 psi. Its compact, solid design allows for a secure, pressure-rated connection within specified guidelines.

  Key Features:

  • - Material Grade: 316/316L stainless steel for corrosion resistance and durability.
  • - Application: Suitable for use in natural gas, water, and oil piping systems according to applicable codes.
  • - Dimensions: Overall length of 6 1/2 inches
  • outside diameter at Side A is 2 5/16 inches.
  • - Connection Type: Threaded ends with 11 1/2-inch pipe threading on both sides.
  • - Fitting Side A: Nominal pipe size 2 in with 2 5/16 in outside diameter.
  • - Fitting Side B: Nominal pipe size 1 1/4 in with 1 5/8 in outside diameter.
  • - Schedule/Class: Schedule 80, indicating a high-pressure wall thickness.
  • - Pressure Rating: Rated for operation within pressure ranges up to 3000 psi at 100°F.
  • - Lengths: Overall length 6 1/2 inches
  • pipe length 1 1/4 inches.
  • - Seal/Sealant: No pre-applied thread sealant or included seals.
  • - Number of Holes: 0.
  • - Includes: No additional seals or sealants supplied.
