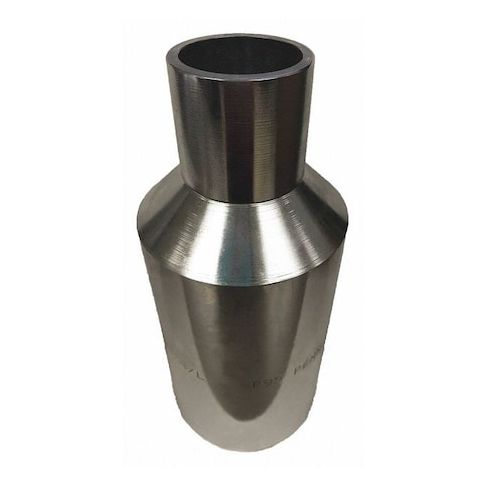

1-1/2" x 1" 316/316L Stainless Steel Swage Nipple Sch 80 MPN:2984833118

• The ZORO SELECT 2984833118 is a stainless steel swage nipple designed for connecting dissimilar pipe sizes in plumbing, hydraulic, and process systems. It features male threads of two different diameters, offering a straight reduction and corrosion resistance, with a maximum working pressure: 3000 psi @ 100°F. Made from 316/316L stainless steel, it provides durability and resistance to rust, and is suitable for fluids compatible with 316/316L stainless steel per applicable codes.

  Key Features:

  • - Material: 316/316L stainless steel for corrosion resistance and durability
  • - Shape: Nipple, providing a short adapter with male threads on both ends
  • - Connection Type: Plain on both sides
  • - Fitting Schedule: Schedule 80, indicating the wall thickness and pressure rating
  • - Nominal Pipe Size: Side A — 1 1/2 in
  • Side B — 1 in
  • - Outside Diameter: Side A — 1 7/8 in
  • Side B — 1 1/4 in
  • - Length: 4 1/2 in
  • - Pressure Rating: Maximum working pressure: 3000 psi @ 100°F
  • - Standards: ASTM A403 WP304/L-S, MSS SP-95-2006
  • - Includes: No pre-applied thread sealant or seal supplied
