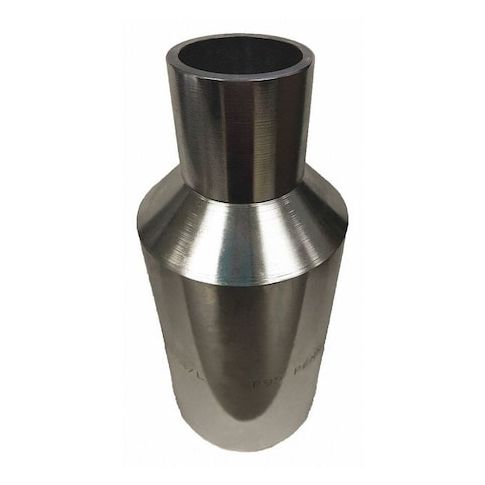

2" x 1/2" 304/304L Stainless Steel Swage Nipple Sch 40 MPN:3954533112
This 2in x 1/2in 304/304L Stainless Steel Swage Nipple is designed to connect pipes with different diameters, providing a reliable and high-pressure connection in metallic piping systems. Made from corrosion-resistant 304/304L stainless steel, it offers strength and durability in various plumbing, hydraulic, and process system applications. With a compact design and pressure rating of up to 3000 psi at 100°F, it's ideal for use in industries such as chemical processing, oil and gas, and water treatment. Its versatility and reliability make it a valuable component in a wide range of applications, from industrial to commercial and residential settings.
Top product features:
- Material Grade: 304/304L stainless steel for corrosion resistance and strength.
- Connection Types: Plain on both sides, suitable for threaded or gasketed fittings.
- Fitting Schedule: Schedule 40, indicating pipe wall thickness compatibility.
Top product applications:
- plumbing
- hydraulic systems
- process systems
The ZORO SELECT - 3954533112 is a stainless steel swage nipple intended to connect pipes with different diameters, providing a straight reduction between them. Made from 304/304L stainless steel, it offers corrosion resistance and strength as per material specifications in various plumbing, hydraulic, and process system applications. The fitting features male threads of two different sizes and is rated for conveying listed fluids within the specified parameters. Its compact design as specified and pressure rating of up to 3000 psi at 100°F enable reliable, high-pressure connections in metallic piping systems with Schedule 40 wall thickness.
Key Features:
- - Material Grade: 304/304L stainless steel for corrosion resistance and strength.
- - Max. Pressure: 3000 psi at 100°F, rated for use within specified pressure ranges.
- - Overall Length: 6 1/2 inches, providing a compact profile.
- - Fitting Schedule: Schedule 40, indicating pipe wall thickness compatibility.
- - Fitting Side A Nominal Pipe Size: 2 inches, with an outside diameter of 2 5/16 inches.
- - Fitting Side B Nominal Pipe Size: 1/2 inch, with an outside diameter of 13/16 inch.
- - Connection Types: Plain on both sides, suitable for threaded or gasketed fittings.
- - Standards: ASTM A403 WP304/L-S, MSS SP-95-2006, ensuring compliance with industry specifications.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.00
- Package Height: 4.00
- Package Weight: 2.88
