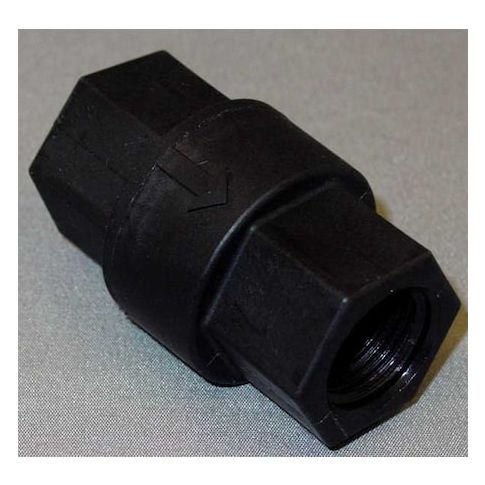

3/8" FNPT Ball Cone Spring Check Valve MPN:FP CHK 693-6F6F-B
Free Shipping
In Stock
This 3/8in FNPT Ball Cone Spring Check Valve from GoVets Select is a reliable and versatile solution for various applications. Suitable for both horizontal and vertical mounting orientations, it allows for efficient flow control and prevents backflow in piping systems. The valve's glass-filled polypropylene construction ensures durability and resistance to extreme temperatures, ranging from -20°F to 140°F. Ideal for use in water pressure applications up to 125 psi, this check valve is a great fit for commercial and industrial settings, including plumbing, HVAC, and chemical processing systems. Its compact design and easy installation make it a convenient choice for a wide range of applications.
Top product features:
- The product has a spring-loaded ball cone mechanism that prevents backflow.
- The valve is designed for horizontal or vertical mounting.
- The valve has a cracking pressure of 0.33 psi.
Top product applications:
- Sanitary equipment for food and beverage industry
- Water treatment systems
- Steam-free applications in various industries
ZORO SELECT Series 693 ball cone spring check valve is an inline check valve for compatible air and fluid service. This 3/8 in valve uses a spring-loaded poppet mechanism for one-way flow applications. The glass-filled polypropylene body, FNPT x FNPT connections, and 0.33 psi cracking pressure are compatible with compact piping systems requiring a 3/8 in FNPT check valve with 0.33 psi cracking pressure.
Key Features:
- Valve type: Ball cone spring check valve with inline body style and single-flow design.
- Size and connections: 3/8 in FNPT x FNPT with female NPT connections on both sides.
- Body and seat material: Glass-filled polypropylene body with glass-filled polypropylene seat.
- Seal and spring materials: Buna-N seal and stainless steel spring.
- Pressure rating: 125 psi maximum operating pressure and 125 psi maximum water pressure.
- Cracking pressure: 0.33 psi opening pressure.
- Temperature range: -20 degrees F to 140 degrees F.
- Mounting orientation: Horizontal or vertical.
- Flow capacity: Cv 4.2.
- Dimensions: 2 in overall length, 1 15/64 in overall height and width, and 15/16 in hex size.
Additional Information
- Country of Origin: JP
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 4.50
- Package Height: 1.40
- Package Weight: 0.23
