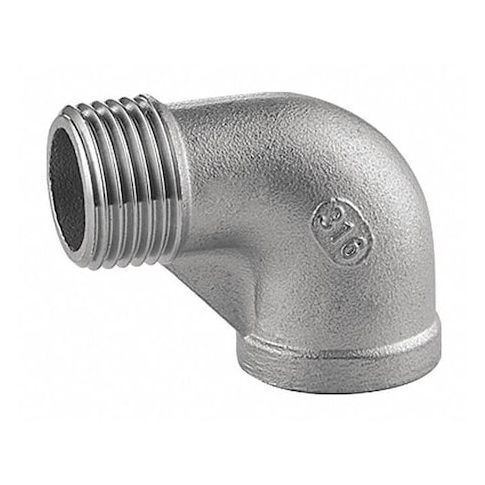

90° Street Elbow, 3/4 in x 3/4 in, 316 Stainless Steel, Class 150, Male NPT x Female NPT MPN:60SE113N034

• The ZORO SELECT - 60SE113N034 is a 90 Degree Street Elbow stainless steel pipe fitting constructed from 316 stainless steel. It connects two pipes at a right angle (90°) using one male (MNPT) and one female (FNPT) threaded end, both sized at 3/4 inch nominal pipe size with 14 threads per inch, conforming to ANSI Standards B1.20.1 and Class 150 pressure ratings. Maximum operating pressure rating: 300 psi

• Maximum steam pressure rating: 150 psi. It is suitable for use in piping systems conveying air, natural gas, non-potable water, oil, potable water, and steam. Key Features:

  • - Material: 316 Stainless Steel for corrosion resistance.
  • - Configuration: Street elbow with one male and one female NPT threaded end for direct connection without short nipples.
  • - Size: Both ends are 3/4 inch nominal pipe size with 14 threads per inch.
  • - Pressure Rating: Class 150 with a Maximum operating pressure rating: 300 psi.
  • - Steam Pressure Rating: Maximum steam pressure rating: 150 psi.
  • - Application Compatibility: Suitable for air, natural gas, non-potable water, oil, potable water, and steam.
  • - Color: Silver finish.
  • - Does not include pre-applied thread sealant or seals.
  • - Meets ANSI B1.20.1 threading standards.
