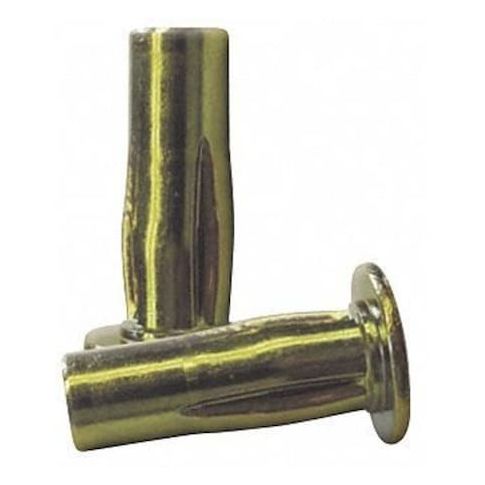

Rivet Nut, M8-1.25 Thread Size, 190.65 mm Flange Dia., 28.95 mm L, Steel, 5 PK MPN:CPB2-8125-7.1-5
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2804265
Rivet Nut, M8-1.25 Thread Size, 190.65 mm Flange Dia., 28.95 mm L, Steel, 5 PK
The GoVets Select Rivet Nut is a high-quality, metric-sized fastening solution for metal applications. With a coarse thread and zinc yellow finish, this rivet nut provides excellent corrosion resistance and durability. Its compact design and smooth body texture make it ideal for use in a variety of industries, including automotive, aerospace, and construction. The rivet nut's bulbed body allows for easy installation and secure fastening, while its 5-pack convenience makes it perfect for projects requiring multiple fasteners. Suitable for metal materials up to 7.1mm thick, this rivet nut is a reliable choice for any metalworking task.
Top product features:
- Rivets securely into metal materials with a minimum thickness of 0.5 mm and a maximum thickness of 7.1 mm.
- Inserts into a hole with a maximum diameter of 12.7 mm and a minimum diameter of 12.6 mm.
- Has a coarse thread type with a M8-1.25 thread size for secure fastening.
Top product applications:
- Fastening of metal sheets and panels
- Automotive parts assembly
- Machine building and fabrication
Rivet Nut, System of Measurement Metric, Insert Diameter 12.6 mm, Overall Length 30.5 mm, Installed Length 14.48 mm, Thread Size M8-1.25, Thread Type Coarse, Flange Diameter 19.7 mm, Flange Thickness 1.57 mm, Material Steel, Material Grade/Class 1008/1010, Finish Zinc Yellow, Body Texture Smooth, Compatible Material Metal, Drill Bit Size 1/2 in, Maximum Hole Diameter 12.7 mm, Minimum Material Thickness 0.5 mm, Maximum Material Thickness 7.1 mm, Insert Nut Type Rivet Nut, Body Type Bulbed
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 5.00
- Package Width: 2.00
- Package Height: 1.00
- Package Weight: 0.15
Product info last updated on February 4, 2026 9:07am UTC
Category: Rivets
