Disc Spring, Poly Wave Comp, 0.73 MPN:1UAZ7

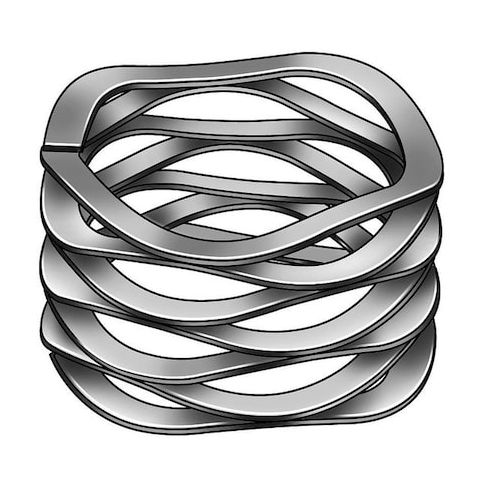

Disc Spring, Poly Wave Comp, 0.73
The GoVets Select Disc Spring is a reliable and efficient compression solution for a wide range of applications. Made from 17-7 PH stainless steel, this disc spring offers exceptional durability and resistance to corrosion. With a load capacity of 25 lbs and a spring rate of 95 lbs/in, it is ideal for applications where precise control and minimal deflection are required. Suitable for use in various industries, including aerospace, automotive, and medical, this disc spring provides a reliable and consistent performance. Its compact design and ease of installation make it a valuable addition to any system.
Top product features:
- 17-7 PH Stainless Steel construction
- Compression of up to 25 Lbs
- Deflection of 0.264 In at maximum load
Top product applications:
- Pressure relief in medical devices
- Vibration dampening in aerospace components
- Load compensation in industrial machinery
Disc Spring, Poly Wave Compression, 17-7 PH Stainless Steel, Thickness 0.015 In, Overall Height 0.583 In, For Hole Size 1 In, For Rod Size 1/4 In, Load 25 Lbs, Deflection @ Load 0.264 In, Spring Rate 95 Lbs/In, Meets/Exceeds AISI Type 17-7 PH
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 2.00
- Package Height: 0.70
- Package Weight: 0.01
Product info last updated on March 17, 2026 10:38am UTC
Category: Springs
