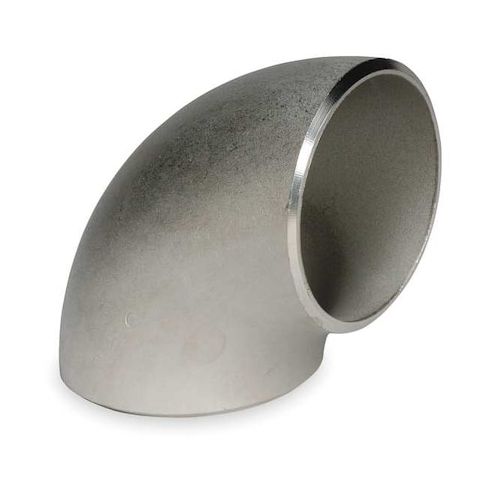

4" Butt Weld 304L SS Short Radius 90 Degree Elbow Sch 40 MPN:4381016660
This 4in Butt Weld 304L SS Short Radius 90 Degree Elbow is a versatile stainless steel pipe fitting designed to change the direction of flow by 90 degrees with a compact bend radius. Manufactured from corrosion-resistant 304L stainless steel, it features butt weld connections on both ends, making it suitable for various piping systems in industries such as food processing, pharmaceuticals, and chemical manufacturing. Its compact design and durable construction make it an ideal choice for applications where space is limited and high-pressure resistance is required. The fitting's Schedule 40 designation ensures compatibility with standard pipe sizing.
Top product features:
- 304L stainless steel provides corrosion resistance and suitability for various piping systems.
- The 90 Degree Short Radius Elbow allows for a compact 90° flow direction change.
- Butt weld connections on both ends enable secure and leak-free connections.
Top product applications:
- Industrial piping systems for chemical plants
- HVAC systems for commercial buildings
- High-purity water systems for laboratories
The ZORO SELECT - 4381016660 is a 90 Degree Short Radius Elbow stainless steel pipe fitting designed to change the direction of flow by 90 degrees with a compact bend radius equal to one nominal pipe diameter (1D). Manufactured from 304L stainless steel, this elbow features butt weld connections on both ends, each sized for 4-inch nominal pipe diameter. The fitting is classified as Schedule 40, indicating the pipe wall thickness standard it mates with. Its overall length is 8 inches, and it is finished in a silver color.
Key Features:
- - Material: 304L stainless steel, providing corrosion resistance and suitability for various piping systems.
- - Shape: 90 Degree Short Radius Elbow for a compact 90° flow direction change.
- - Connection Type: Butt Weld ends on both sides (Side A and Side B).
- - Nominal Pipe Size: 4 inches for both ends, matching standard pipe sizing.
- - Pipe Schedule: Schedule 40 wall thickness designation.
- - Overall Length: 8 inches.
- - Manufactured to standards 403M-88a and ASTM-A-403/A for dimensions and materials.
- - Does not include pre-applied thread sealant or additional seals.
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 4.70
- Package Height: 4.70
- Package Weight: 5.65
