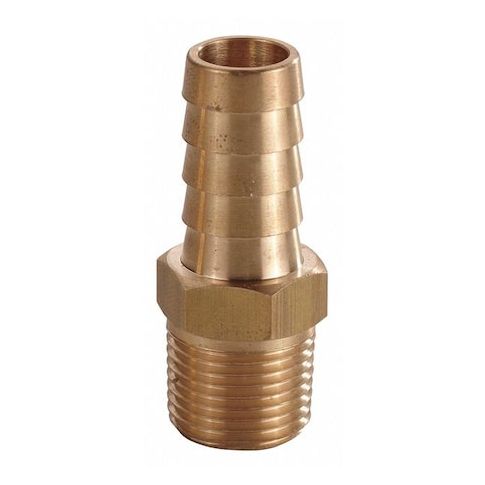

Hose Barb, 5/8 In Barb, 1/2 In MNPT, Brass MPN:6AFL4

The ZORO SELECT - 6AFL4 is a barbed hose fitting designed predominantly for low pressure pneumatic and water applications. It features a hose barb x NPT fitting connection type and is chiefly constructed from brass. This rigid hose fitting is manufactured to create straight connections and sports a unique barb shape. The 5/8 inches barb size corresponds with hoses boasting an inner diameter of the same size. Its fitting material is exclusively brass, which has a grade of C37700, enabling it to handle a pressure capacity of up to 300 psi. Please note that the vacuum rating for this fitting hasn't been specified.

Key Features:

• Connection Application: Low Pressure Pneumatic and Water.
• Barb Size: 5/8 in, corresponds with the inner diameter of the compatible hose.
• Fitting Connection Type: Hose Barb x NPT, outlining the style of connection.
• Material: Brass, offering excellent durability and resistance.
• Pressure Capacity: up to 300 psi, indicating the upper limit of pressure it is designed to handle.
• Fitting Shape: Straight, signifying the geometric configuration of the fitting.
• Nipple Grip Type: Hex, denotes the shape for effective grip during installation or removal.
• Reuse: Not recommended, designed primarily for single-use applications.
