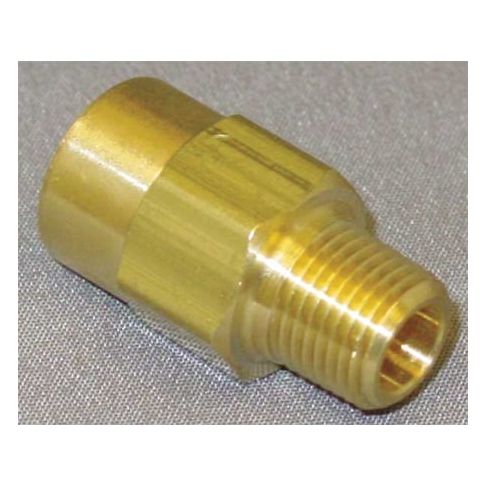

1/2" MNPT x FNPT Brass Piston Spring Check Valve MPN:CHK BRS 810-8M8F-F
Free Shipping
In Stock
This 1/2in MNPT x FNPT Brass Piston Spring Check Valve from GoVets Select is a reliable solution for various applications, including water supply systems, HVAC, and industrial processes. Its inline piston design allows for full flow and easy installation, while the stainless steel spring ensures long-lasting performance. The valve's cracking pressure is set at 1 psi, and it can withstand pressures up to 500 psi. Suitable for horizontal or vertical mounting, this valve is ideal for use in temperatures ranging from -20°F to 180°F, making it a versatile option for a wide range of industries and applications.
Top product features:
- 1/2in MNPT x FNPT Brass Piston Spring Check Valve has a single flow design.
- It features an inline piston mechanism and body design.
- The valve has a cracking pressure of 1 psi.
Top product applications:
- Water heater shut-off valve
- Frost protection for irrigation systems
- Steam trap bypass
ZORO SELECT Series 810 piston spring check valve with an inline, single-flow design for general-purpose air and fluid service. It uses a spring-loaded brass piston to allow flow in one direction and close when flow slows or reverses for use in piping systems requiring one-way flow control. The brass body has 1/2 in. MNPT x FNPT threaded connections and can be mounted horizontally or vertically.
Key Features:
- Inline piston spring check valve for one-way flow control
- 1/2 in. nominal valve size with 1/2 in. MNPT x FNPT NPT connections
- Brass body, brass check mechanism, and brass seat
- FKM/Viton and PTFE seal materials
- Stainless steel spring
- 1 psi cracking pressure
- Full-flow design
- For air and fluid service
- 500 psi maximum pressure
- Operating temperature range: -20 degrees F to 180 degrees F
- Overall length: 1.88 in.
- overall height: 1 in.
- hex size: 1 in.
- Horizontal or vertical mounting orientation
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 4.40
- Package Height: 1.00
- Package Weight: 1.19
