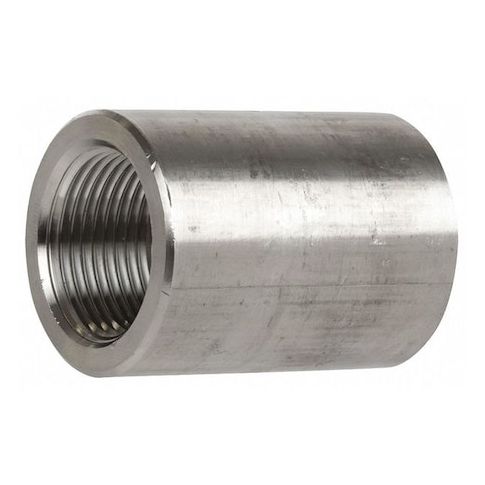

316 Stainless Steel Coupling, Class 3000, 1/8 in FNPT Female Threaded MPN:2TY80
Free Shipping
In Stock
This 316 Stainless Steel Coupling is a reliable and durable connection solution for fluid transfer applications. Designed for use in high-pressure systems, it features female National Pipe Tapered Thread (FNPT) connections with 27 TPI, conforming to the NPT standard. With a maximum rated pressure of 3000 psi at 100°F, it's perfect for use in industrial settings, such as chemical processing, oil and gas, and water treatment. Its corrosion-resistant 316 stainless steel construction ensures long-lasting performance, making it an ideal choice for applications where reliability and durability are crucial. Its compact size and easy installation make it a convenient solution for various piping systems.
Top product features:
- 316 Stainless Steel construction
- Female National Pipe Tapered Thread (FNPT) connections with 27 TPI
- Compliant with ASME B16.11 specifications
Top product applications:
- Water treatment and filtration systems
- Chemical processing and handling equipment
- Laboratory and medical equipment
The ZORO SELECT - 2TY80 is a 1/8-inch stainless steel coupling made of 316 stainless steel. It is designed to connect two pipes or tubes in a straight line for fluid transfer, subject to proper installation and operating conditions. It features female National Pipe Tapered Thread (FNPT) connections with 27 TPI, conforming to the NPT standard. The product's pressure ratings are based on specified standards and conditions
- actual performance may vary depending on installation and operating conditions. The coupling is rated as Class 3000 according to industry standards
- maximum rated pressure at specified temperature is 3000 psi. The material and threads conform to ASTM-A-182 and ANSI/ASME B1.20.1 standards, meeting ASME B16.11 specifications.
Key Features:
- - Material: 316 stainless steel
- - Size: 1/8 inch nominal pipe size on both ends
- - Connection: Female NPT threaded on both Side A and Side B, each with 27 threads per inch
- - Pressure Rating: Class 3000, with a maximum pressure of 3000 psi @ 100°F and steam pressure rating of 2500 psi @ 350°F
- - Standards: Material meets ASTM-A-182
- threads conform to ANSI/ASME B1.20.1
- compliant with ASME B16.11
- - Does not include pre-applied thread sealant or sealing components
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.63
- Package Width: 0.63
- Package Height: 1.26
- Package Weight: 0.11
