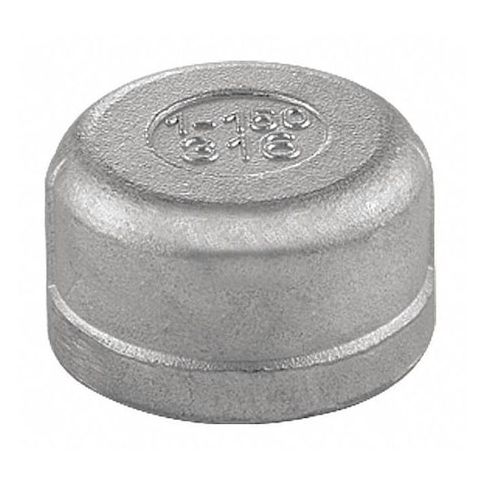

3 in FNPT 316L Stainless Steel Threaded Cap, Class 150, Schedule 40 MPN:60RDC111N030

The ZORO SELECT 60RDC111N030 is a stainless steel pipe cap designed to close and seal the end of a 3-inch pipe. Constructed from 316L stainless steel, this fitting is intended for use with Schedule 40 pipes and features an FNPT threaded connection with an 8 TPI specification on its side A thread. It is rated for an maximum operating pressure of 300 psi at specified conditions, and is rated for use within a temperature range of -20 to 350 degrees Fahrenheit. This cap is used to stop flow and protect pipe interiors, and is intended for line termination and protection of pipe interiors.

Key Features:

• - Material Grade: 316L stainless steel providing corrosion resistance.
• - Nominal Pipe Size: 3 inches to match standard pipe dimensions.
• - Connection Type: FNPT threaded connection with 8 threads per inch.
• - Pressure Rating: rated for an maximum operating pressure of 300 psi at specified conditions.
• - Temperature Range: rated for use within the specified temperature range.
• - Outside Diameter: 3 inches, compatible with standard pipe dimensions.
• - Overall Length: 47.5 mm.
• - Does not include pre-applied thread sealant or additional sealing components.
• - Complies with ANSI B1.20.1 standards for threaded pipe fittings.

Additional Information
