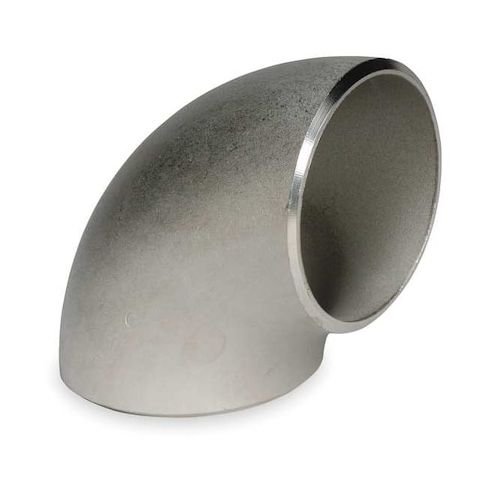

3 in. 304L Stainless Steel Butt Weld Short Radius 90° Elbow, Schedule 40 MPN:4381016650

• The ZORO SELECT - 4381016650 is a 90 Degree Short Radius Elbow made from 304L stainless steel, provides a 90-degree change in flow direction within a piping system. Featuring butt weld end connections on both sides, it is compatible with 3-inch Schedule 40 piping. Centerline radius equals one nominal pipe diameter. The fitting conforms to ASTM A403/A and A403M-88a

• dimensions and material quality. Key Features:

  • - Material: 304L stainless steel
  • - Shape: 90 Degree Short Radius Elbow with Centerline radius equals one nominal pipe diameter
  • - Butt weld ends on both sides
  • - Nominal Pipe Size: 3 inches on both ends, compatible with standard 3" piping.
  • - Pipe Schedule: Schedule 40, indicating wall thickness compatibility.
  • - Overall Length: 6 inches
  • - Conforms to ASTM A403/A and A403M-88a
  • dimensions and material quality.
  • - Color: Silver finish typical of stainless steel material.
