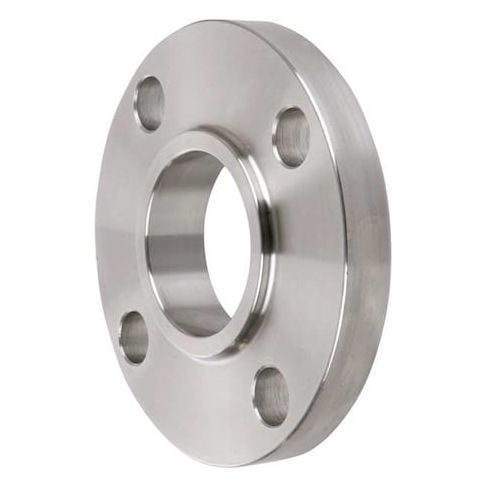

3" Welded 316 SS Lap Joint Flange MPN:4381002070
Free Shipping
In Stock
This 3-inch welded lap joint flange is a reliable choice for piping systems, offering corrosion resistance and mechanical strength in a wide range of operating conditions. Constructed from durable 316 stainless steel, it features a loose, flat ring construction that allows for free rotation and bolt-hole alignment, making it ideal for applications where flexibility is crucial. Suitable for use in standard pressure ranges, this flange is compatible with ANSI B16.5 and ASTM A182 standards, making it a versatile solution for various industries, including chemical processing, oil and gas, and food and beverage production.
Top product features:
- The flange features a loose, flat ring construction that fits over a stub end welded to the pipe, allowing the flange to rotate freely to facilitate bolt-hole alignment.
- It is constructed from 316 stainless steel, which offers corrosion resistance and mechanical strength within the specified operating conditions.
- The flange has a lap joint connection type, enabling rotation for alignment flexibility.
Top product applications:
- Piping systems conforming to standard assembly requirements
- High-temperature applications up to 450°F
- Industrial processes requiring corrosion resistance and mechanical strength
The ZORO SELECT 4381002070 is a stainless steel lap joint flange that is compatible with piping systems conforming to standard assembly requirements. It features a loose, flat ring construction that fits over a stub end welded to the pipe, allowing the flange to rotate freely to facilitate bolt-hole alignment. Constructed from 316 stainless steel, which offers corrosion resistance and mechanical strength within the specified operating conditions, it provides durability and reliability for your piping needs. The flange has a nominal size of 3 inches, with four bolt holes and an outside diameter of 7-1/2 inches, conforming to ANSI B16.5 and ASTM A182 standards.
Key Features:
- - Material Grade: 316 Stainless Steel, offering corrosion resistance and durability.
- - Connection Surface: Lap Joint, enabling rotation for alignment flexibility.
- - Connection Type: Welded, designed for secure attachment to pipes.
- - Fitting Schedule/Class: Rated for use within standard pressure ranges associated with Class 150 fittings.
- - Flange Outside Diameter: 7-1/2 inches, measuring the external flange width.
- - Nominal Pipe Size: 3 inches, compatible with standard piping.
- - Number of Bolt Holes: 4, for securing the flange to mating components.
- - Pipe Fitting Shape: Lap Joint Flange, facilitating disassembly and alignment.
- - Standards: ANSI B16.5, ASTM A182, ensuring compliance with recognized specifications.
- - Temperature Range: -60°F to 450°F, as specified for this model.
Additional Information
- Country of Origin: VN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 7.50
- Package Height: 1.19
- Package Weight: 8.82
