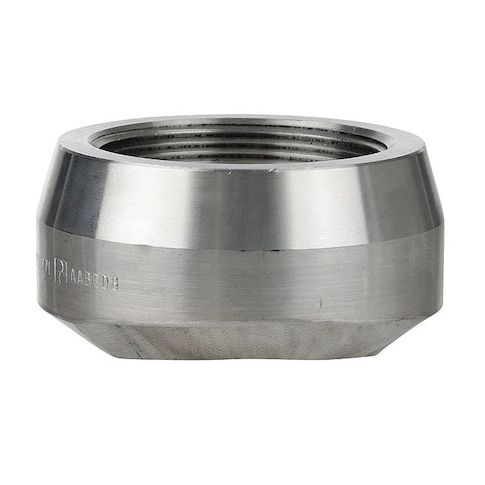

1-1/4" FNPT SS Threaded Outlet MPN:4307002850

The ZORO SELECT - 4307002850 is a stainless steel threaded outlet pipe fitting made from 304 stainless steel. It features a female NPT threaded connection on Side A with a nominal pipe size of 1 1/4 inches and a socket type female connection on Side B sized for 3 1/2 inches. Classified as Class 3000, it is rated for operation up to 2,570 psi at 100°F and 1,965 psi steam at 350°F. The fitting is silver in color and conforms to the MSS SP-97 standard, provides a branch connection compatible with MSS SP-97 for non-welded piping connections.

Key Features:

• - Constructed from 304 stainless steel material grade.
• - Female NPT threaded outlet with 1 1/4 inch nominal pipe size and 2-9/16 inch outside diameter on Side A.
• - Socket type female connection on Side B with 3 1/2 inch nominal pipe size.
• - Pressure rating: Class 3000, supporting up to 2,570 psi @ 100°F operating pressure.
• - Steam pressure rating up to 1,965 psi @ 350°F.
• - Color: Silver.
• - Does not include pre-applied thread sealant or additional seals.
• - Complies with MSS SP-97 standard.
