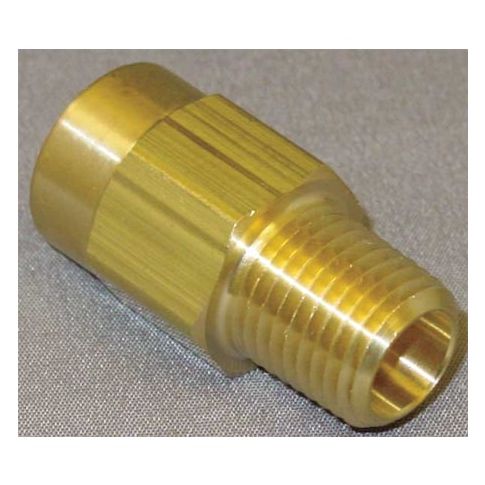

1/4" FNPT x MNPT Brass Piston Spring Check Valve MPN:CHK BRS 410-4F4M-B
Free Shipping
In Stock
This 1/4in FNPT x MNPT Brass Piston Spring Check Valve is a reliable and efficient solution for various applications. Suitable for use in both horizontal and vertical orientations, it features a cracking pressure of 1 psi and a maximum water pressure of 500 psi, making it ideal for water-based systems. The valve's full flow design ensures unobstructed passage of fluids, while its piston mechanism provides smooth operation. With a temperature range of -20°F to 180°F, it can be used in a variety of settings, including residential and commercial plumbing, industrial processes, and HVAC systems, requiring a reliable check valve.
Top product features:
- 1/4in FNPT x MNPT Brass Piston Spring Check Valve has a single flow design.
- The valve has an inline piston mechanism and body design.
- The valve has a stainless steel spring.
Top product applications:
- Water Filtration Systems
- Steam Traps
- Hydraulic Systems
ZORO SELECT 410 series check valve is an inline piston spring check valve for air and fluid applications within specified ratings. It uses a spring-loaded brass piston for one-way flow control and closure when flow slows or reverses. This 1/4 in valve has FNPT x MNPT NPT threaded connections, a brass body, and is compatible with horizontal or vertical mounting.
Key Features:
- Piston spring check design: Inline piston mechanism for one-way flow control.
- Connections: 1/4 in FNPT x MNPT
- side 1 female NPT and side 2 male NPT.
- Materials: Brass body, brass seat, brass check mechanism, stainless steel spring, and Buna-N seal.
- Cracking pressure: 1 psi.
- Pressure rating: 500 psi maximum operating pressure and 500 psi maximum water pressure.
- Temperature range: -20 Degrees F to 180 Degrees F.
- Flow: Full flow.
- Mounting orientation: Horizontal or vertical.
- Flow capacity: Cv 0.6.
- Dimensions: 1 3/8 in length, 19/32 in overall height and width, 5 7/16 in cap to inlet center, 19/32 in hex size.
- Standards: UL, UR.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.60
- Package Width: 4.00
- Package Height: 0.70
- Package Weight: 0.41
