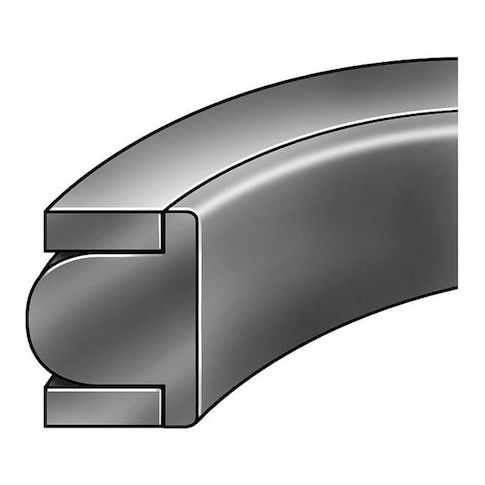

Piston Seal, 7/8 IDx1 1/8 OD, 1/8 Wx1/8 H MPN:2JAW5
Piston Seal, 7/8 IDx1 1/8 OD, 1/8 Wx1/8 H
This high-performance piston seal is designed for use in a variety of applications, including hydraulic and pneumatic systems, where it can withstand extreme temperatures and pressures. Made from durable nitrile material with a 70 Shore A durometer, this seal provides long-lasting sealing capabilities and resistance to wear and tear. Its compact size and lightweight design make it ideal for use in tight spaces, while its ability to operate at speeds up to 3.0 fps and pressures up to 5,000 psi make it suitable for demanding applications such as heavy machinery and industrial equipment.
Top product features:
- Seal Type T-Seal provides a secure fit in piston grooves
- Nitrile material offers chemical resistance and durability
- Seal Durometer 70 Shore A provides a balance of hardness and flexibility for long-lasting performance
Top product applications:
- Piston Seal can be used in hydraulic cylinders for heavy-duty applications such as construction equipment and industrial machinery.
- Piston Seal can be used in pneumatic cylinders for applications such as medical devices and laboratory equipment.
- Piston Seal can be used in aircraft and aerospace applications where high temperature and pressure resistance is required.
Piston T-Seal, Seal Type T-Seal, Seal Material Nitrile, For Bore Dia. 1 1/8 in, Seal Durometer 70 Shore A, Temp. Range -35 Degrees to 220 Degrees F, For Groove Width 0.187 in, For Piston Groove Dia. 0.882 in, Max. Speed 3 fps, Max. Pressure 5,000 psi, Backup Ring Material Nylon, Inside Dia. 7/8 in, Outside Dia. 1 1/8 in, Width 1/8 in, Height 1/8 in, Color Black
Additional Information
- Country of Origin: IN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 1.20
- Package Height: 0.30
- Package Weight: 0.01
Product info last updated on March 7, 2026 3:38am UTC
Category: Sealing and Gasketing
