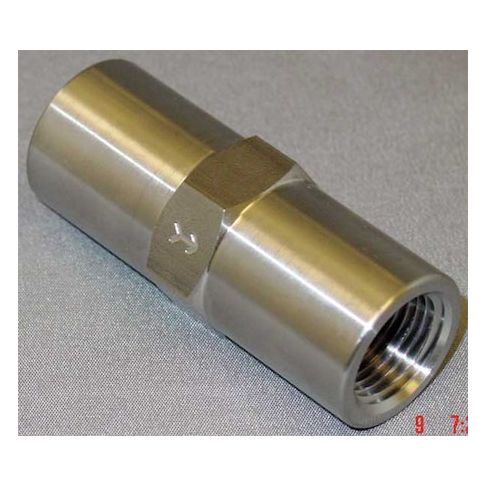

3/8" FNPT Stainless Steel Piston Spring Check Valve MPN:CHK SST 615-6F6F-B
Free Shipping
In Stock
This 3/8in FNPT Stainless Steel Piston Spring Check Valve is a reliable and durable solution for various industrial applications. It features a single flow design with a piston mechanism and stainless steel body, ensuring high-pressure resistance and corrosion resistance. Suitable for use in horizontal and vertical orientations, this valve is ideal for water supply systems, steam systems, and other applications where a high-pressure check valve is required. Its Buna-N seal and stainless steel spring provide a tight seal and long-lasting performance, making it a great choice for demanding environments.
Top product features:
- The check valve is designed with a piston mechanism for inline installation.
- The valve is made with stainless steel for durability and resistance to corrosion.
- The valve has a cracking pressure of 1 psi for precise control of fluid flow.
Top product applications:
- Water treatment systems
- Steam power plants
- Industrial process control systems
ZORO SELECT 615 series check valve is an inline piston spring check valve for general-purpose air and fluid service. It uses a spring-loaded stainless steel piston check mechanism for one-way flow applications. This 3/8 in. valve has FNPT x FNPT female threaded connections, a stainless steel body, and a 1 psi cracking pressure for use in horizontal or vertical installations where backflow control is required.
Key Features:
- Valve type: Inline piston spring check valve with single-flow configuration
- Body and internal materials: Stainless steel body, stainless steel check mechanism, stainless steel seat, and stainless steel spring
- Connection size and type: 3/8 in. FNPT x FNPT with female threaded connections on both ends
- Pressure rating: 500 psi maximum operating pressure
- Temperature range: -20 degrees F minimum operating temperature
- 180 degrees F maximum operating temperature
- Seal material: Buna-N
- Flow capacity: Cv 2.2
- Mounting orientation: Horizontal or vertical
- Dimensions: 2 1/4 in. overall length, 7/8 in. overall height, 7/8 in. overall width, 7/8 in. hex size
- Standards: UL, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 3.00
- Package Height: 1.00
- Package Weight: 1.17
