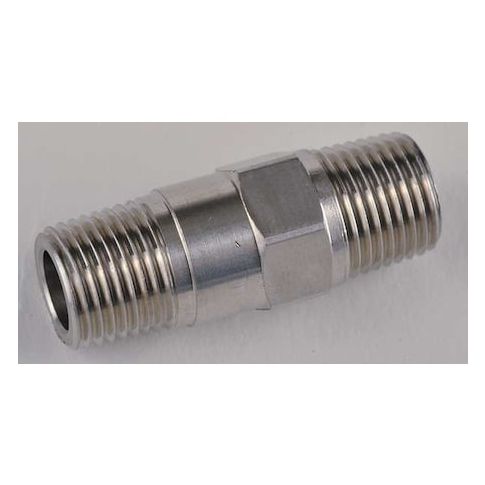

1/8" FNPT x MNPT Stainless Steel Piston Spring Check Valve MPN:CHK SST 210-2F2M-B
Free Shipping
In Stock
The GoVets Select 1/8in FNPT x MNPT Stainless Steel Piston Spring Check Valve is a reliable and durable solution for various industrial applications. This inline check valve features a stainless steel body and spring, ensuring high resistance to corrosion and wear. Its single piston design allows for efficient flow control, making it ideal for use in water treatment systems, chemical processing, and other high-pressure applications. The valve's compact size and lightweight design make it easy to install and maintain, reducing downtime and increasing overall system efficiency. Suitable for temperatures ranging from -20°F to 180°F, this valve is a versatile and reliable choice for a wide range of industries.
Top product features:
- 1/8in FNPT x MNPT Stainless Steel Piston Spring Check Valve has a single flow design.
- The valve has a piston mechanism and inline body design.
- The valve is made with stainless steel, including the body, seat, and spring materials.
Top product applications:
- Water Supply Systems
- Steam Traps
- Industrial Process Control
This Zoro Select 210 Series piston spring check valve is an inline, single-flow valve for compatible air and fluid applications. It uses a spring-loaded stainless steel piston to allow flow in one direction and close at 1 psi cracking pressure to restrict reverse flow. The stainless steel body and internal metal components, along with a Buna-N seal, are configured for piping systems with 1/8 in NPT threaded connections.
Key Features:
- Type: Piston spring check valve with inline piston design
- Body material: Stainless steel
- Check mechanism: Stainless steel piston with stainless steel spring and seat
- Connections: 1/8 in FNPT x MNPT, NPT threaded
- Flow design: Single, full flow
- Cracking pressure: 1 psi
- Pressure rating: 500 psi maximum operating and water pressure
- Temperature range: -20 degrees F to 180 degrees F
- Media compatibility: Air and compatible fluids
- Mounting orientation: Horizontal or vertical
- Seal material: Buna-N
- Valve series: 210
- Standards: UL, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.23
