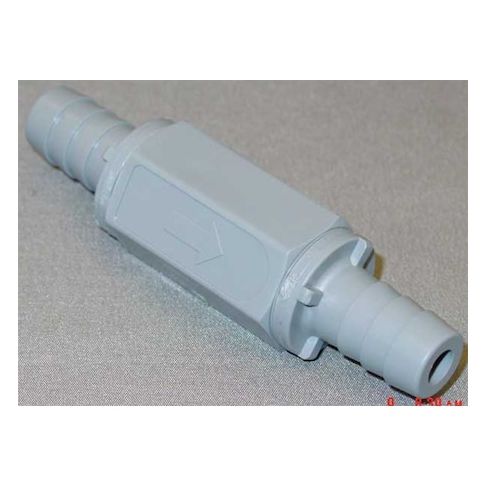

1/2" Barb Gray PVC Ball Cone Spring Check Valve MPN:PVC CHK 426-8B8B-B
Free Shipping
In Stock
The GoVets Select 1/2in Barb Gray PVC Ball Cone Spring Check Valve is a reliable and efficient solution for various industrial and commercial applications. Its inline design and single flow direction make it ideal for use in water treatment, chemical processing, and HVAC systems. The valve's cracking pressure of 1 psi ensures precise control, while its ability to withstand pressures up to 125 psi makes it suitable for high-pressure applications. The PVC body and stainless steel spring ensure durability and resistance to corrosion, making it a great choice for use in harsh environments.
Top product features:
- Flow design is single, allowing for smooth and unobstructed passage of fluid.
- The inline ball cone mechanism enables the valve to open and close with minimal pressure loss.
- The valve is designed for full flow, allowing fluids to pass through with minimal restriction.
Top product applications:
- Water Supply Systems
- Industrial Process Control
- Pumping Stations
Zoro Select Series 426 check valve with an inline ball cone spring design and 1/2 in barb x barb connections. This valve is for general-purpose service and media compatible with PVC and Buna-N components, using a spring-loaded ball mechanism to allow forward flow and restrict reverse flow. The PVC body, PVC seat, and Buna-N seal support inline applications involving reverse-flow control in compact installations.
Key Features:
- Ball cone spring check valve with inline body design
- 1/2 in barb x barb connections
- PVC body and PVC seat
- Ball check mechanism with stainless steel internal component
- Buna-N seal
- Hastelloy spring
- 1 psi cracking pressure
- 125 psi maximum operating and water pressure
- Temperature range: -20 degrees F to 140 degrees F
- Horizontal or vertical mounting orientation
- Full flow design
- NSF 42
- Overall dimensions: 3.53 in L x 1 in H x 1 in W
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 5.50
- Package Height: 1.00
- Package Weight: 0.33
