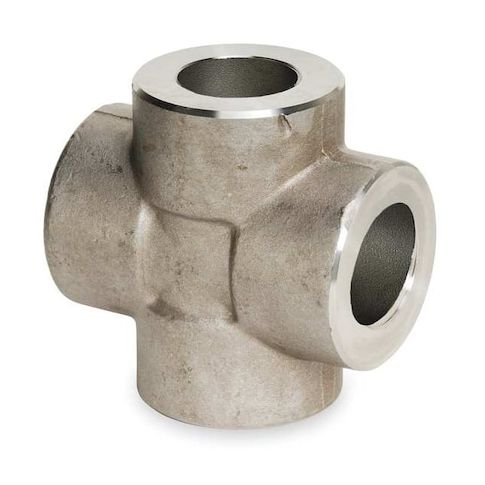

1" Socket Weld SS Cross MPN:4307005218
Elevate your piping systems with the ZORO SELECT 4307005218, a stainless steel cross pipe fitting designed for high-performance applications. Made from 304 grade stainless steel, this fitting features four equal 1-inch socket weld openings, allowing for efficient connections of multiple pipe runs. Rated for use at pressures up to 3000 psi, it's ideal for demanding environments such as chemical processing, oil and gas, and power generation. Its compact design and silver finish make it a versatile choice for a wide range of industries, including pharmaceutical, food processing, and HVAC. Upgrade your piping systems with this reliable and durable fitting.
Top product features:
- Connects four pipe runs with equal openings arranged at 90 degrees
- Has a Class 3000 pressure rating, rated for use at pressures up to 3000 psi
- Rated for steam pressure up to 2810 psi at 350°F
Top product applications:
- Steam Distribution Systems
- High-Temperature Chemical Processing
- Industrial Sanitary Systems
The ZORO SELECT - 4307005218 is a stainless steel cross pipe fitting made from 304 grade stainless steel. It features four equal openings arranged at 90 degrees in one plane, intended to connect four pipe runs. This fitting uses socket weld connections on all four sides, each with a nominal pipe size of 1 inch and female gender. It carries a Class 3000 pressure rating, rated for use at pressures up to 3000 psi. The fitting is silver in color and conforms to standards including ISO 9001:2008, ASTM A182, and ASME B16.11.
Key Features:
- - Pipe fitting shape: Cross with four equal 1-inch socket weld openings
- - Material grade: 304 stainless steel
- - Connection type: Socket weld with female connection gender on all sides
- - Pressure rating: Rated for use at pressures up to 3000 psi
- - Rated for steam pressure up to 2810 psi at 350°F
- - Outside diameter at connection: Approximately 2 1/16 inches
- - Overall length of fitting: 2 3/4 inches
- - Color: Silver
- - Conforms to ISO 9001:2008, ASTM A182, and ASME B16.11 standards
Additional Information
- Country of Origin: TW
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 3.20
- Package Height: 2.00
- Package Weight: 1.80
