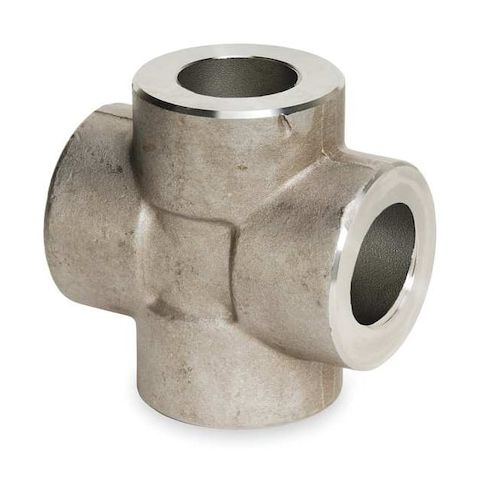

1-1/4" Socket Weld SS Cross MPN:4307005220
The ZORO SELECT 4307005220 is a versatile 304 stainless steel pipe fitting designed for high-pressure applications in plumbing, HVAC, and industrial process piping systems. Its four socket weld female connections allow for easy connection or division of flow in system specifications, making it an ideal solution for applications requiring four-line pipe connections. With a pressure rating of 3000 psi and steam pressure of 2810 psi at 350°F, this cross fitting ensures reliable performance in demanding environments. Its compact design and durable construction make it a reliable choice for a wide range of industrial and commercial applications.
Top product features:
- 304 stainless steel construction
- Socket weld female connections on all four ends
- Nominal pipe size of 1 1/4 inches for each port
Top product applications:
- Plumbing systems
- HVAC systems
- Industrial process piping systems
The ZORO SELECT - 4307005220 is a 304 stainless steel pipe fitting in a cross shape, featuring four openings arranged at 90° in one plane. It is intended for the connection or division of flow within system specifications and is constructed with socket weld female connections on all four ends. The fitting has a nominal pipe size of 1 1/4 inches for each port and is compatible with Schedule 80 pipe. It is designed to meet the specified pressure rating for Class 3000, with a pressure rating of 3000 psi and a steam pressure of 2810 psi at 350°F. This cross fitting is used in applications requiring four-line pipe connections in plumbing, HVAC, and industrial process piping systems.
Key Features:
- - Material grade: 304 stainless steel
- - Connection type: socket weld, female gender on all four sides (A, B, C, D)
- - Nominal pipe size: 1 1/4 in on all four ports
- - Fitting Schedule/Class: Class 3000, compatible with Schedule 80 pipe
- - Pressure rating: 3000 psi
- steam pressure: 2810 psi at 350°F
- - Overall length: 3 1/8 in
- Outside diameter at side A: 2 5/16 in
- - Standards compliance: ISO 9001:2008, ASTM A182, ASME B16.11
- - Does not include pre-applied thread sealant or additional seals
Additional Information
- Country of Origin: TW
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 3.70
- Package Height: 2.30
- Package Weight: 2.50
