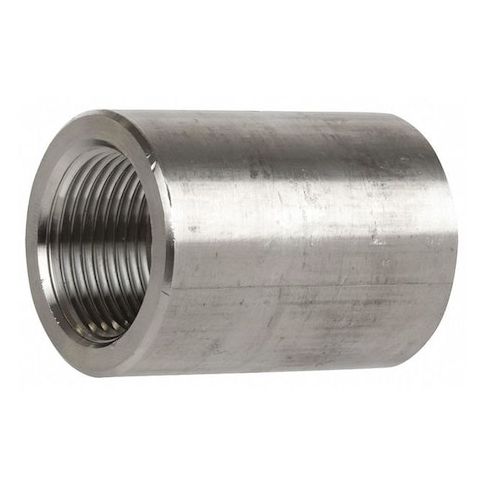

3/4 in FNPT 316 Stainless Steel Coupling, Class 3000 MPN:2TY84
Free Shipping
In Stock
The ZORO SELECT - 2TY84 is a high-performance 3/4-inch stainless steel coupling designed for demanding plumbing, process, and high-pressure applications. Constructed from corrosion-resistant 316 stainless steel, it provides a continuous flow path in a straight line, joining two pipes or tubes with ease. Suitable for applications requiring strength and durability, this coupling meets industry standards for material, threads, and pressure ratings. Ideal for use in chemical processing, power generation, and other industries where reliability and safety are paramount. Its compact design and high-pressure rating make it an excellent choice for a wide range of applications.
Top product features:
- 316 stainless steel construction provides corrosion resistance and strength.
- Both ends have female NPT threaded connections with 14 threads per inch for secure and leak-free connections.
- Meets industry standards for material, threads, and pressure ratings for safe and reliable operation.
Top product applications:
- Plumbing applications where corrosion resistance and strength are required
- Process applications where high-pressure and corrosion resistance are necessary
- High-pressure applications in industries such as oil and gas, chemical processing, and power generation
The ZORO SELECT - 2TY84 is a 3/4-inch stainless steel coupling designed to join two pipes or tubes with a continuous flow path in a straight line. Constructed from 316 stainless steel, it is suitable for plumbing, process, and high-pressure applications where corrosion resistance and strength are required. Both ends have female NPT threaded connections with 14 threads per inch on both ends. The fitting meets industry standards ASTM A182 for material, ANSI/ASME B1.20.1 for threads, and ASME B16.11 and is rated for a maximum pressure of 3000 psi at 100 degrees Fahrenheit and a maximum steam pressure of 2500 psi at 350 degrees Fahrenheit.
Key Features:
- - Material: 316 stainless steel.
- - Size: Nominal pipe size of 3/4 inch on both connection ends.
- - Connection Type: NPT threaded connections with 14 threads per inch on both ends.
- - Pressure Rating: Class 3000, rated for 3000 psi at 100°F maximum internal pressure.
- - Steam Pressure Rating: 2500 psi at 350°F maximum steam pressure.
- - Conforms to ASTM A182, ANSI/ASME B1.20.1, and ASME B16.11 standards.
- - Includes no pre-applied thread sealant or sealing components.
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.38
- Package Width: 1.38
- Package Height: 2.01
- Package Weight: 0.42
