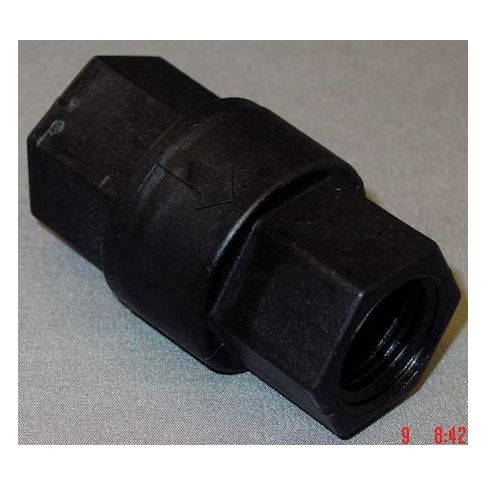

Ball Cone Spring Check Valve, 1/2 in FNPT x 1/2 in FNPT, Inline Valve Body, 1-1/8 in Hex MPN:FP CHK 685-8F8F-F
Free Shipping
In Stock
This versatile Ball Cone Spring Check Valve is ideal for a wide range of applications, including industrial, commercial, and residential use. Its inline design and 1/2 in FNPT connections make it perfect for plumbing, HVAC, and fluid handling systems. The valve's glass-filled polypropylene body and Viton seal ensure durability and resistance to corrosion, while its 0.33 psi cracking pressure provides precise control. With a maximum temperature range of 140°F and a maximum water pressure of 125 psi, this valve can handle demanding applications. Suitable for horizontal or vertical mounting, it's a reliable choice for various industries and projects.
Top product features:
- Flow Design Single
- Mechanism and Body Design Inline Ball Cone
- Seal Material Viton
Top product applications:
- Water Treatment Systems
- Steam Traps
- Industrial Pumps
ZORO SELECT 685 series ball cone spring check valve is a 1/2 in inline check valve with FNPT x FNPT female threaded connections. It uses a spring-loaded poppet-style check mechanism for one-direction flow applications. This valve is for compatible air and fluid applications, with a glass filled polypropylene body, polypropylene check mechanism, stainless steel spring, and FKM/Viton sealing components.
Key Features:
- Valve type: Ball cone spring check valve with inline body design and single flow path.
- Connections: 1/2 in FNPT x 1/2 in FNPT, female on both ends.
- Materials: Glass filled polypropylene body and seat, polypropylene check mechanism, stainless steel spring, FKM/Viton seal.
- Cracking pressure: 0.33 psi.
- Pressure rating: 125 psi maximum operating pressure and 125 psi maximum water pressure.
- Temperature range: -20 degrees F to 140 degrees F.
- Mounting orientation: Horizontal or vertical.
- Full flow: Yes.
- Size details: 1-1/8 in hex, 2.5 in overall length, 1-7/16 in overall height.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 5.70
- Package Height: 1.70
- Package Weight: 0.40
