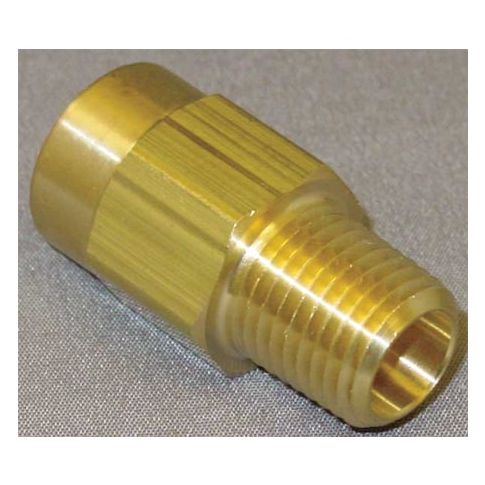

1/8" FNPT x MNPT Brass Piston Spring Check Valve MPN:CHK BRS 210-2F2M-F
Free Shipping
In Stock
This 1/8in FNPT x MNPT Brass Piston Spring Check Valve from GoVets Select is a reliable and efficient solution for various applications. Ideal for use in industrial, commercial, and residential settings, it ensures one-way flow and prevents backpressure, making it perfect for water, steam, and air systems. The valve's compact design and corrosion-resistant construction make it suitable for use in high-temperature environments, while its Viton seal and stainless steel spring ensure durability and long lifespan. Suitable for applications such as HVAC systems, plumbing, and hydronic heating, this valve is a cost-effective and reliable choice for any project.
Top product features:
- Piston spring design allows for full flow and reliable shut-off
- Viton seal material provides resistance to chemicals and high temperatures
- Stainless steel spring material ensures corrosion resistance and durability
Top product applications:
- Water Distribution Systems
- Steam Traps
- Gas Service Applications
ZORO SELECT 210 Series check valve is a 1/8 in. piston spring check valve with an inline brass body and FNPT x MNPT NPT connections. It uses a spring-loaded brass piston to support directional flow for general-purpose air and fluid service and is intended to reduce reverse flow in compatible piping systems. This valve has a 1 psi cracking pressure, a full-flow design, and can be mounted horizontally or vertically.
Key Features:
- Valve type: Piston spring check valve with inline piston design
- Body and internal materials: Brass body, brass check mechanism, brass seat, stainless steel spring
- Connections: 1/8 in. FNPT x MNPT, NPT threads
- Flow rating: Cv 0.2
- Pressure rating: 500 psi maximum operating pressure
- Temperature range: -20 degrees F to 180 degrees F
- Seal material: Viton/FKM
- Mounting orientation: Horizontal or vertical
- Dimensions: 1 1/16 in. length, 9/16 in. overall height, 9/16 in. width, 9/16 in. hex size
- Standards: UL, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.25
