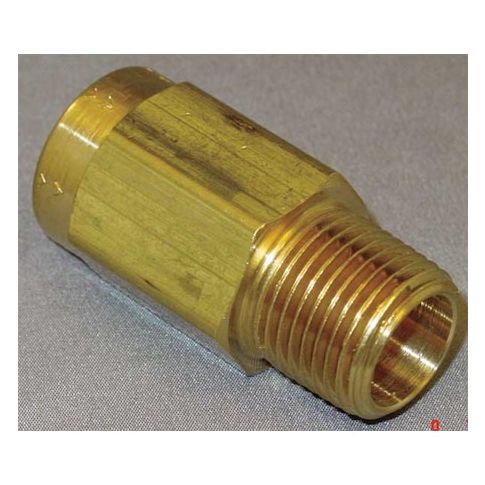

1/2" FNPT x MNPT Brass Piston Spring Check Valve MPN:CHK BRS 810-8F8M-B
Free Shipping
In Stock
This 1/2in FNPT x MNPT Brass Piston Spring Check Valve is a reliable solution for various applications, including commercial and industrial use. Its inline piston design allows for full flow, making it ideal for systems requiring unidirectional flow. The valve's brass body and stainless steel spring ensure durability and resistance to corrosion, while its Buna-N seal provides a secure seal up to 180°F. Suitable for use in water-based systems, this valve can withstand pressures up to 500 psi, making it a versatile choice for plumbers, contractors, and engineers working on projects involving residential, commercial, or industrial piping systems.
Top product features:
- 1/2in FNPT x MNPT Brass Piston Spring Check Valve has a cracking pressure of 1 psi.
- The valve features a full flow design, allowing fluids to pass through without restriction.
- The valve is constructed with a stainless steel spring for durability and resistance to corrosion.
Top product applications:
- Potable Water Systems
- Steam Traps and Drain Systems
- Industrial Process Control Systems
ZORO SELECT series 810 check valve is an inline piston spring check valve for general-purpose air and fluid service. It uses a spring-loaded brass piston and is configured for one-way flow applications and intended to reduce backflow in piping systems. This 1/2 in. valve has FNPT x MNPT NPT connections, a 1 psi cracking pressure, and can be mounted horizontally or vertically.
Key Features:
- Valve type: Piston spring check valve with inline body design and single flow path.
- Body and internal materials: Brass body, brass check mechanism, brass seat, Buna-N seal, and stainless steel spring.
- Connections: 1/2 in. FNPT x MNPT
- side 1 female NPT and side 2 male NPT.
- Pressure rating: 500 psi maximum operating pressure and maximum water pressure.
- Temperature range: -20 degrees F minimum operating temperature to 180 degrees F maximum operating temperature.
- Flow characteristics: Cv 2.2 and 1 psi cracking pressure.
- Mounting: Horizontal or vertical orientation.
- Dimensions: 1.88 in. overall length, 1 in. overall height and width, 1 in. hex size, and 5 7/16 in. cap to inlet center.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 2.00
- Package Height: 2.00
- Package Weight: 1.38
