1-1/2 in Stainless Steel Socket Weld Coupling, Class 3000, 304L, Full Coupling MPN:4307004274
Free Shipping
In Stock

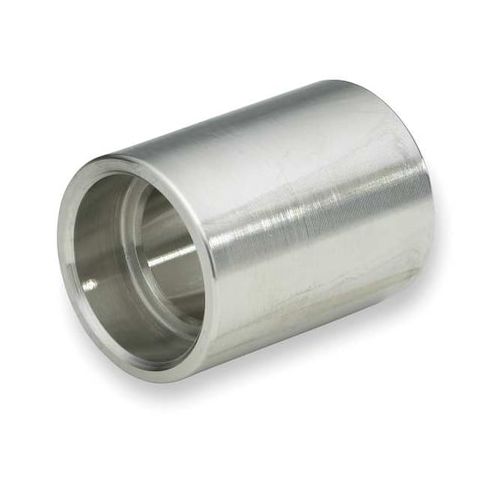

Join pipes and tubes efficiently with the ZORO SELECT 4307004274 1-1/2 in Stainless Steel Socket Weld Coupling. Constructed from durable 304 stainless steel, this full coupling maintains a continuous flow path with no change in internal diameter. With a pressure rating of Class 3000, it supports maximum internal pressures up to 3000 psi and steam pressures up to 2810 psi at 350°F. Ideal for use in high-pressure applications, such as chemical processing, power generation, and oil and gas industries, this coupling ensures reliable connections and optimal performance. Its compact design and silver finish make it a versatile solution for various piping systems.
Top product features:
- Maintains a continuous flow path with no change in internal diameter when joining two pipes or tubes in a straight line.
- Supports maximum internal pressures up to 3000 psi and steam pressures up to 2810 psi at 350°F.
- Features socket weld connections on both ends with a nominal pipe size of 1 1/2 inches.
Top product applications:
- Steam Power Generation Systems
- Chemical Processing Plants
- Oil and Gas Refining Facilities
The ZORO SELECT - 4307004274 is a full coupling stainless steel pipe fitting designed to join two pipes or tubes in a straight line, maintaining a continuous flow path with no change in internal diameter. Constructed from 304 stainless steel, this coupling features socket weld connections on both ends with a nominal pipe size of 1 1/2 inches. It is pressure rated to Class 3000, supporting maximum internal pressures up to 3000 psi and steam pressures up to 2810 psi at 350°F. The fitting is silver in color and complies with standards including ISO 9001:2008, ASTM A182, and ASME B16.11.
Key Features:
- - Material Grade: 304 stainless steel
- - Fitting Type: Full coupling with socket weld connections on both ends (female gender)
- - Nominal Pipe Size: 1-1/2 inches for both ends
- - Pressure Rating: Class 3000, max pressure 3000 psi, max steam pressure 2810 psi @ 350°F
- - Outside Diameter: Approximately 2-5/16 inches at each connection end
- - Overall Length: 1-1/2 inches
- - Color: Silver
- - Standards: ISO 9001:2008, ASTM A182, ASME B16.11
- - Does not include pre-applied thread sealant or sealing components
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 2.60
- Package Height: 2.60
- Package Weight: 1.13
