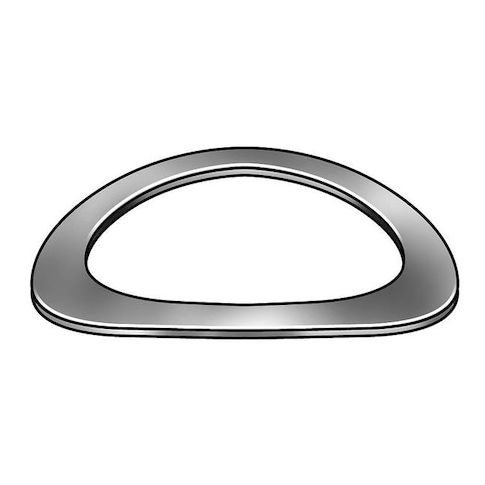

Disc Spring, Curved, 0.25, 301 SS, PK10 MPN:1UAN4
Disc Spring, Curved, 0.25, 301 SS, PK10
This curved disc spring is made from durable 301 stainless steel and features a compact design with a thickness of 0.011 inches and overall height of 0.063 inches. It is suitable for use in applications requiring a load of up to 7 pounds, with a deflection of 0.034 inches at maximum load. The spring is designed for use with a 1/2-inch hole and 1/4-inch rod, making it ideal for a variety of industrial and mechanical applications, including machinery, equipment, and tooling. Its compact size and high load capacity make it a valuable component for engineers and designers seeking a reliable and efficient solution.
Top product features:
- Curved design allows for a snug fit around a rod of 1/4 inch diameter
- Meets/exceeds AISI Type 302 standards for corrosion resistance
- Deflects up to 0.034 inches under a 7 pound load
Top product applications:
- Shock Absorber
- Pressure Relief Device
- Mechanical Stop
Disc Spring, Curved, 301 Stainless Steel, Min Inside Dia 0.265 In, Max Outside Dia 0.490 In, Thickness 0.011 In, Overall Height 0.063 In, For Hole Size 1/2 In, For Rod Size 1/4 In, Load 7 Lbs, Deflection @ Load 0.034 In, Meets/Exceeds AISI Type 302, Package 10
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 3.30
- Package Width: 2.00
- Package Height: 0.20
- Package Weight: 0.01
Product info last updated on January 31, 2026 9:09am UTC
Category: Springs
