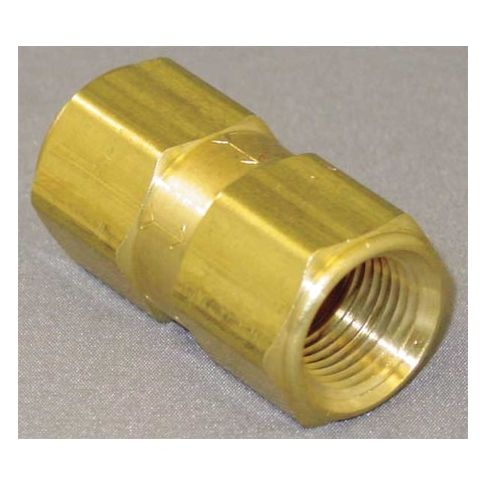

3/8" FNPT Brass Poppet Spring Check Valve MPN:CHK BRS 650-6F6F-B

• ZORO SELECT 650 Series poppet spring check valve with an inline, single-flow design. It has a brass body, brass poppet, brass seat, stainless steel spring, and Buna-N seal. With 3/8 in FNPT x FNPT connections, it is intended for general purpose water service applications requiring one-direction flow control.

  Key Features:

  • Valve type: Poppet spring check valve with inline poppet design
  • Flow function: Configured for one-direction water flow with a spring check mechanism that closes when flow stops or reverses
  • Body material: Brass
  • Check mechanism material: Brass
  • Seat material: Brass
  • Seal material: Buna-N
  • Spring material: Stainless steel
  • Connection type: 3/8 in FNPT x FNPT with female threads on both ends
  • Cracking pressure: 1 psi
  • Flow design: Single
  • full flow
  • Maximum water pressure: 1200 psi
  • Operating temperature range: -20 degrees F to 180 degrees F
  • Mounting orientation: Horizontal or vertical
  • Overall length: 1.75 in
  • Standards: UL, UR
