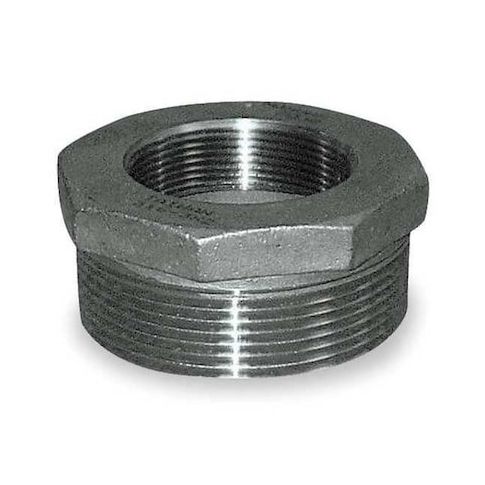

2 in x 3/8 in 316 Stainless Steel Hex Reducing Bushing, Male NPT x Female NPT, Class 150 MPN:4381035100
Elevate your industrial projects with the 2 in x 3/8 in 316 Stainless Steel Hex Reducing Bushing, designed for demanding environments. This versatile fitting enables seamless connections between pipes and equipment, featuring a male NPT thread on one end and a female NPT connection on the other. Constructed from durable Grade 316 stainless steel, it withstands high pressures and temperatures, making it ideal for applications in chemical processing, oil and gas, and food and beverage industries. With a maximum operating pressure of 300 psi at 150°F, this bushing ensures reliable performance and durability in harsh conditions.
Top product features:
- Material: Grade 316 stainless steel, providing corrosion resistance and durability.
- Connection Type: MNPT x FNPT (male and female tapered threads), allowing for secure connections between pipes.
- Shape: Hex reducing bushing with a 2 7/16 in across flats hex wrenching surface, enabling easy installation and tightening.
Top product applications:
- Chemical Processing: This product can be used in chemical processing applications where a 2 inch connection needs to be reduced to a 3/8 inch connection, such as in piping systems for chemical plants or refineries.
- Oil and Gas Industry: The 316 stainless steel material and Class 150 rating make this product suitable for use in oil and gas applications, such as connecting pipes in drilling or extraction operations.
- Water Treatment Plants: The corrosion-resistant properties of the 316 stainless steel material make this product a good choice for use in water treatment plants, where it can be used to connect pipes and fittings in systems that handle wastewater or other corrosive fluids.
The ZORO SELECT 4381035100 is a stainless steel hex reducing bushing designed with a male NPT thread connection on one end and a female NPT connection on the other. It features a 2 7/16-inch hex size, a 1-3/8-inch outside diameter, and a length of 1 3/8 inches. Material: Grade 316 stainless steel. The fitting is rated for a maximum pressure of 300 psi and a maximum steam pressure of 150 psi, with a maximum operating pressure of 300 psi at 150°F.
Key Features:
- - Material: Grade 316 stainless steel
- - Connection Type: MNPT x FNPT (male and female tapered threads)
- - Pressure Rating: Max. pressure 300 psi
- Max. steam pressure 150 psi
- Max. operating pressure 300 psi at 150°F
- - Size: 2 in nominal pipe size (Side A) and 3/8 in nominal pipe size (Side B)
- - Shape: Hex reducing bushing with a 2 7/16 in across flats hex wrenching surface
- - Standards: Material conforms to ASTM-A-351
- threads conform to ASME B1.20.1
- rated for MSS-SP-114 Class 150
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 3.00
- Package Height: 1.60
- Package Weight: 1.95
