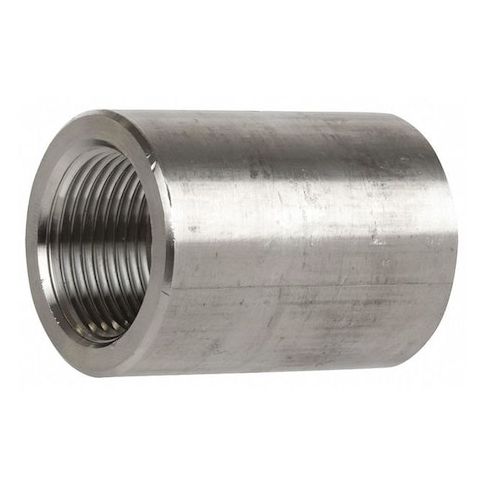

3 in FNPT 316 Stainless Steel Coupling, Class 3000, 3000 psi MPN:4307001176
This 3-inch 316 stainless steel coupling from GoVets Select is a reliable and durable solution for joining pipes and tubes in a variety of applications. Constructed from high-quality 316 stainless steel, this coupling can withstand high pressures and temperatures, making it ideal for use in industrial, commercial, and heavy-duty settings. With a Class 3000 pressure rating and maximum internal pressure of 3,000 psi at 100°F, this coupling is suitable for use with steam, water, and other fluids. Its compact design and easy-to-install female NPT connections make it a convenient choice for plumbers, engineers, and maintenance professionals.
Top product features:
- The coupling is constructed from 316 stainless steel.
- The fitting features female National Pipe Thread (FNPT) connections on both ends with NPT threading.
- The coupling has a Class 3000 pressure rating.
Top product applications:
- Industrial Pipe Fittings
- Steam Systems
- High-Pressure Applications
The ZORO SELECT - 4307001176 is a 3-inch coupling constructed from 316 stainless steel. This short tubular fitting is designed to join two pipes or tubes in a straight line. It features female National Pipe Thread (FNPT) connections on both ends with NPT threading, Class 3000 pressure rating. Maximum internal pressure: 3,000 psi at 100°F
- Maximum steam pressure: 2,810 psi at 350°F.
Key Features:
- - Material: 316 stainless steel
- - Nominal Pipe Size: 3 inches on both ends
- - Connection Type: Female NPT threads on both sides
- - Pressure rating: Class 3000 pressure rating
- - Maximum internal pressure: 3,000 psi at 100°F
- - Maximum steam pressure: 2,810 psi at 350°F
- - Outside Diameter: 4-1/4 inches
- - Overall Length: 4-1/4 inches
- - Thread Standards: ASME B1.20.1 NPT
- - Material and Dimension Standards: ASTM A182, ASME B16.11
- - No pre-applied thread sealant or included seals
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 4.30
- Package Height: 4.30
- Package Weight: 7.25
