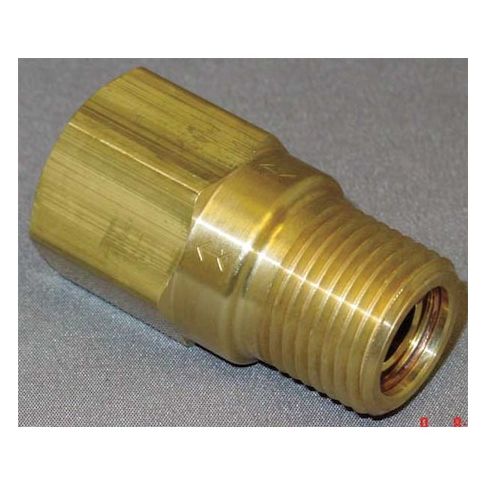

1/8" FNPT x MNPT Brass Piston Spring Check Valve MPN:CHK BRS 210-2F2M-B
Free Shipping
In Stock
This 1/8in FNPT x MNPT Brass Piston Spring Check Valve is a reliable and efficient solution for various applications. Ideal for use in water, oil, and gas systems, it prevents backflow and ensures a consistent flow of fluids. The valve's compact design and easy installation make it perfect for use in tight spaces and critical systems. Its high-temperature resistance and durable construction ensure long-lasting performance. Suitable for use in HVAC, plumbing, and industrial applications, this check valve is a valuable addition to any system, providing peace of mind and trouble-free operation.
Top product features:
- Flow design is single, allowing for unidirectional flow.
- The valve has a piston mechanism and inline body design.
- The valve has a cracking pressure of 1 psi, allowing for precise control over fluid flow.
Top product applications:
- Water Distribution Systems
- Steam Traps and Drain Systems
- Medical Equipment and Laboratory Equipment
ZORO SELECT Series 210-2F2M-B is an inline brass piston spring check valve for air and compatible fluid applications within the stated ratings. This one-way valve uses a spring-loaded piston check mechanism for one-direction flow applications. It features 1/8 in. NPT threaded connections with one female end and one male end, a 1 psi cracking pressure, and a full-flow design. The valve can be mounted horizontally or vertically and is rated for operating temperatures from -20 degrees F to 180 degrees F.
Key Features:
- Valve type: Piston spring check valve with inline piston mechanism for one-direction flow applications
- Body and internal materials: Brass body, brass check mechanism, brass seat, stainless steel spring, and Buna-N seal
- Connections: 1/8 in. FNPT x MNPT with NPT threads
- Pressure rating: 500 psi maximum operating pressure and maximum water pressure
- Cracking pressure: 1 psi opening pressure
- Mounting orientation: Horizontal or vertical
- Size and dimensions: 1/8 in. nominal valve size
- 1 1/16 in. length
- 9/16 in. overall height and width
- 9/16 in. hex size
- Standards: UL, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.24
