Spiral Wound Metal Gasket, CR, 8 in., 11 in MPN:SWCR00-0800-P1-G-WE-OA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2474355

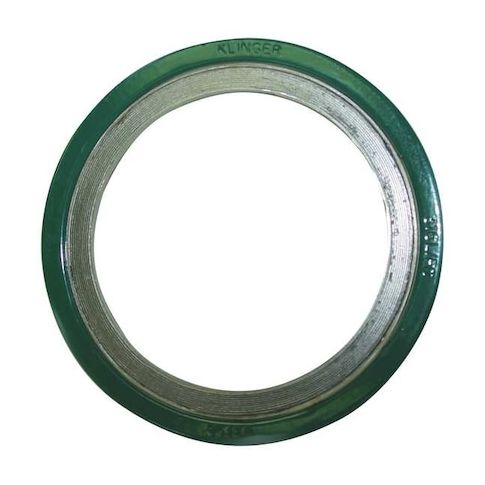

Spiral Wound Metal Gasket, CR, 8 in., 11 in
This Spiral Wound Metal Gasket is designed for use with ANSI Class 150 flanges and 8-inch pipes, providing a reliable and durable seal in high-pressure applications. The graphite filler material and stainless steel spiral winding ensure excellent resistance to temperature and pressure fluctuations, while the carbon steel outer ring provides added strength. Suitable for use in a variety of industries, including oil and gas, chemical processing, and power generation, this gasket can withstand temperatures from 0°F to 932°F and pressures up to 150 psi. Its compact design and easy installation make it an ideal choice for new and replacement applications.
Top product features:
- Spiral wound design provides a tight seal between the flange and pipe.
- Carbon steel outer ring provides durability and resistance to corrosion.
- Graphite filler material allows for flexibility and resistance to high temperatures.
Top product applications:
- Pump repair
- Valve replacement
- Flange sealing for chemical processing equipment
Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 8 in, Inside Diameter 9 3/16 in, Outside Diameter 11 in, Thickness 1/4 in, Rim Stripe Color Gray, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature 0 Degrees F, Maximum Operating Temperature 932 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Stainless Steel Grade Not Applicable, Maximum Operating Pressure 150 psi
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 12.00
- Package Width: 12.00
- Package Height: 3.00
- Package Weight: 6.00
Product info last updated on February 14, 2026 5:34am UTC
Category: Sealing and Gasketing
