Spiral Wound Metal Gasket, CR, 3in, 5-3/8in MPN:SWCR00-0300-P1-G-WE-OA
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2474300

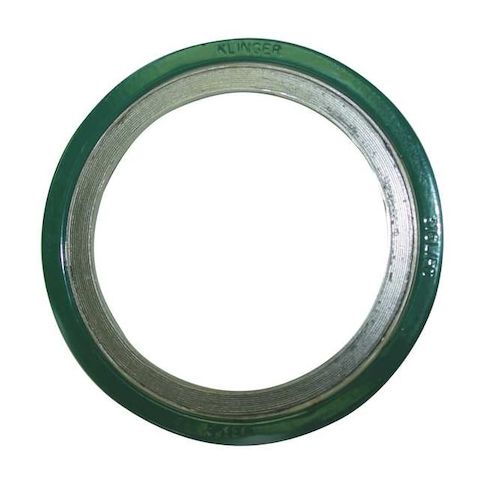

Spiral Wound Metal Gasket, CR, 3in, 5-3/8in
This Spiral Wound Metal Gasket is designed for use with ANSI Class 150 flanges, offering reliable sealing performance in high-pressure applications. The gasket features a stainless steel spiral winding, graphite filler, and carbon steel outer ring, providing excellent durability and resistance to extreme temperatures (-0°F to 932°F). Suitable for use in various industries, including chemical processing, power generation, and oil and gas, this gasket ensures leak-tight joints and minimizes maintenance. Its compact size and lightweight design make it an ideal choice for applications where space and weight are a concern.
Top product features:
- Spiral winding material provides resistance to corrosion and wear.
- Inner and outer ring materials are made from corrosion-resistant stainless steel.
- The gasket is designed to operate at high temperatures up to 932 Degrees F.
Top product applications:
- Industrial piping systems
- High-temperature chemical processing
- Power generation
Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 3 in, Inside Diameter 4 in, Outside Diameter 5 3/8 in, Thickness 1/4 in, Rim Stripe Color Gray, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature 0 Degrees F, Maximum Operating Temperature 932 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Stainless Steel Grade Not Applicable, Maximum Operating Pressure 150 psi
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 4
- Unit of Measure: EA
- Package Length: 15.00
- Package Width: 12.00
- Package Height: 1.00
- Package Weight: 1.00
Product info last updated on March 5, 2026 5:42am UTC
Category: Sealing and Gasketing
