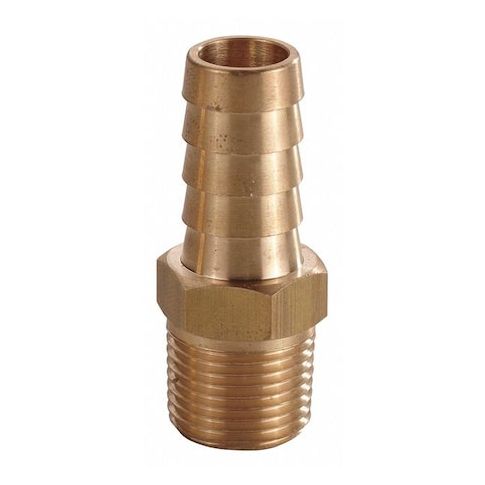

Hose Barb, 5/16 In Barb, 3/8 In MNPT, Brass MPN:6AFK7
Free Shipping
In Stock
The ZORO SELECT - 6AFK7 is a reliable Barbed Hose Fitting designed for use in low-pressure pneumatic and water applications. Made from durable Brass, this fitting provides a stable and static connection, ideal for direct in-line routing and connections. Its 5/16 in barb and 3/8 in MNPT fitting can accommodate hoses with an I.D. of 5/16 in, making it suitable for various applications such as irrigation, cooling systems, and industrial processes. With a maximum pressure of 300 psi, this fitting ensures a secure connection, providing peace of mind for users and extending the lifespan of equipment.
Top product features:
- The ZORO SELECT 6AFK7 is designed for utilization in low pressure pneumatic and water applications.
- The fitting is made from Brass x Brass, a robust material renowned for its durability.
- The fitting has a barb size of 5/16 in and fitting size of 5/16 in x 3/8 in, which can comfortably accommodate hoses with an I.D. of 5/16 in.
Top product applications:
- Low pressure pneumatic applications
- Water applications
- Hose connections for pneumatic and water systems
The ZORO SELECT - 6AFK7 is a Barbed Hose Fitting, crafted for utilization in low pressure pneumatic and water applications. Made from Brass x Brass, this fitting is specifically modeled with rigid attributes, which under ideal conditions, can produce a stable and static connection within the respective application. With its straight fitting shape, the 6AFK7 is well-suited for direct, in-line routing and connections. It's barb size of 5/16 in and fitting size of 5/16 in x 3/8 in can comfortably accommodate hoses with an I.D. of 5/16 in. Its male gendered Hose Fitting A and B are designed for Hose Barb and NPT Connection Types, respectively.
Key Features:
- Fitting Connection Type: Hose Barb x NPT, securing a compatible connection within the application.
- Fitting Material: Brass x Brass, a robust material renowned for its durability.
- Fitting Shape: Straight, facilitating an uncomplicated, direct connection.
- Hex Head Size: 11/16 in, necessitates an appropriately sized wrench or socket to tighten or loosen the fitting.
- Hose Fitting A and B Connection Types: Hose Barb and NPT, providing options to connect with different hose mediums.
- Max. Pressure: 300 psi, signifies the maximum internal working pressure capability of the fitting under ideal conditions.
- Material Grade: C37700, indicating the specific type of brass used in its construction.
- Pipe Fitting Connection Type: Barbed x MNPT, extending versatility in connectivity options.
- Thread Size: 3/8 in, ensuring compatibility with corresponding hose or pipe threads.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 4.50
- Package Height: 4.00
- Package Weight: 1.35
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
