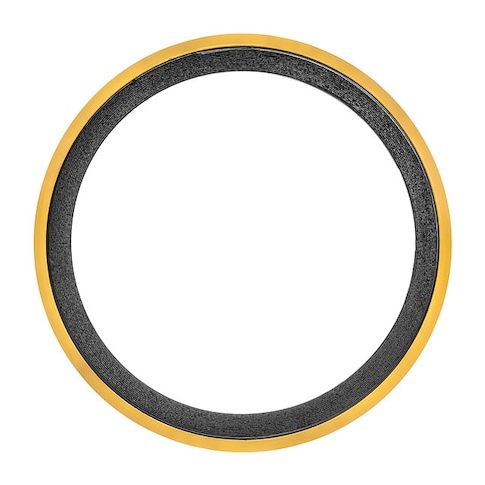

Spiral Wound Gasket with PTFE Filler, 3", 1/8" Thick, No 150 MPN:BULK-FG-2023
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2438416
Spiral Wound Gasket with PTFE Filler, 3", 1/8" Thick, No 150
This Spiral Wound Gasket with PTFE Filler is designed for use on ANSI Class 150 flanges, providing a reliable seal in high-temperature applications. The PTFE filler material ensures excellent chemical resistance, while the stainless steel spiral winding and carbon steel outer ring offer durability and resistance to corrosion. This gasket is suitable for use in industrial settings, such as chemical processing, power generation, and oil and gas production, where temperatures can range from -300°F to 1200°F. Its compact design and easy installation make it an ideal choice for a variety of applications, including flange-to-flange connections and pipe fittings.
Top product features:
- Spiral winding material made of stainless steel for corrosion resistance and durability.
- PTFE filler material for high-temperature resistance and chemical inertness.
- Outer ring made of carbon steel for added strength and stability.
Top product applications:
- High-Pressure Pipe Flanges
- Industrial Pipe Fittings and Valves
- High-Temperature Chemical Processing Equipment
Spiral Wound Flange Gasket, For Flange ANSI Class 150, For Pipe Size 3 in, Inside Diameter 4 in, Outside Diameter 5 3/8 in, Thickness 3/16 in, Filler Material PTFE, Outer Ring Material Carbon Steel, Minimum Operating Temperature -300 Degrees F, Maximum Operating Temperature 1,200 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Stainless Steel Grade Not Applicable, Standards ASME B16.20, Market Industrial, System of Measurement Inch
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.40
- Package Width: 5.40
- Package Height: 0.20
- Package Weight: 0.30
Product info last updated on January 18, 2026 12:36pm UTC
Category: Sealing and Gasketing
