Spiral Wound Gasket with Graphite Filler, 2-1/2", 1/8" Thick, No 1500 MPN:BULK-FG-3103
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2438398

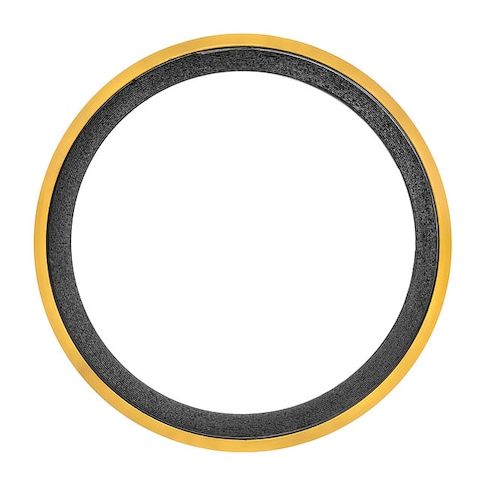

Spiral Wound Gasket with Graphite Filler, 2-1/2", 1/8" Thick, No 1500
This Spiral Wound Gasket with Graphite Filler is designed for use on high-temperature ANSI Class 1500 flanges, making it ideal for applications in the chemical, oil and gas, and power generation industries. The graphite filler provides excellent sealing properties, while the stainless steel spiral winding ensures durability and resistance to corrosion. With a temperature range of -300°F to 1200°F, this gasket can handle extreme conditions. Its compact size and lightweight design make it easy to install and transport, reducing downtime and increasing efficiency. Suitable for use on pipes up to 2.5 inches in diameter, it's a reliable choice for demanding industrial applications.
Top product features:
- Spiral winding material is Stainless Steel Grade 304.
- Filling material is Graphite.
- Operating temperature range is -300 to 1,200 Degrees F.
Top product applications:
- High-Pressure Boiler Applications
- High-Temperature Chemical Processing
- Industrial Power Generation
Spiral Wound Flange Gasket, For Flange ANSI Class 1,500, For Pipe Size 2 1/2 in, Inside Diameter 2 3/4 in, Outside Diameter 6 1/2 in, Thickness 3/16 in, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -300 Degrees F, Maximum Operating Temperature 1,200 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Stainless Steel Grade Not Applicable, Standards ASME B16.21
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.20
- Package Width: 6.50
- Package Height: 6.50
- Package Weight: 0.90
Product info last updated on February 24, 2026 3:50pm UTC
Category: Sealing and Gasketing
