Spiral Wound Gasket with Graphite Filler, 1-1/2", 1/8" Thick, No 600 MPN:BULK-FG-3078
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2438389

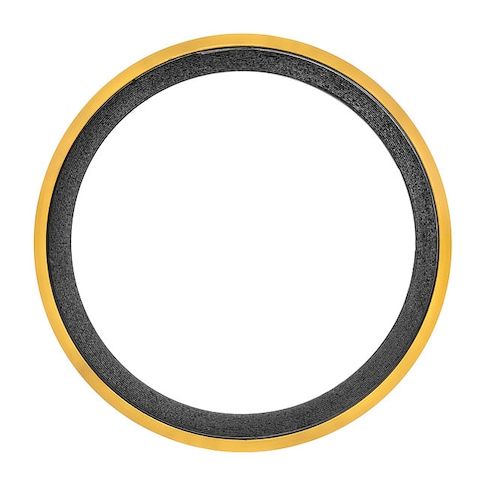

Spiral Wound Gasket with Graphite Filler, 1-1/2", 1/8" Thick, No 600
This Spiral Wound Gasket with Graphite Filler is designed for high-temperature applications, with a minimum operating temperature of -300°F and a maximum of 1,200°F. Made with a stainless steel spiral winding and carbon steel outer ring, it provides excellent resistance to chemicals and extreme temperatures. Suitable for use in ANSI Class 600 flanges, it offers a secure seal for pipes up to 1 1/2 inches in size. Ideal for use in industries such as oil and gas, chemical processing, and power generation, this gasket provides reliable performance and long-lasting durability in demanding environments.
Top product features:
- Spiral winding material is Stainless Steel Grade 304, providing corrosion resistance and durability.
- The gasket has a graphite filler, allowing for high-temperature sealing and chemical resistance.
- The carbon steel outer ring provides structural support and stability in high-pressure applications.
Top product applications:
- High-temperature steam piping systems
- Chemical processing plants
- Power generation facilities
Spiral Wound Flange Gasket, For Flange ANSI Class 600, For Pipe Size 1 1/2 in, Inside Diameter 2 1/8 in, Outside Diameter 3 3/4 in, Thickness 3/16 in, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -300 Degrees F, Maximum Operating Temperature 1,200 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Stainless Steel Grade Not Applicable, Standards ASME B16.21, Resistance Properties Chemical-Resistant
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.20
- Package Width: 4.30
- Package Height: 4.30
- Package Weight: 0.40
Product info last updated on March 16, 2026 12:35am UTC
Category: Sealing and Gasketing
