Spiral Wound Gasket with Graphite Filler, 3", 1/8" Thick, No 600 MPN:BULK-FG-3081
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2438373

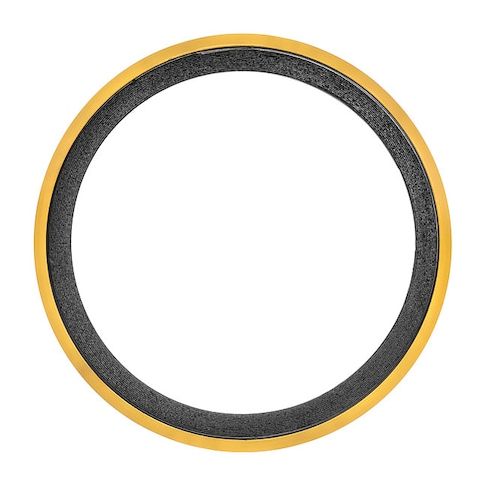

Spiral Wound Gasket with Graphite Filler, 3", 1/8" Thick, No 600
This Spiral Wound Gasket with Graphite Filler is a reliable solution for high-temperature applications. Designed for ANSI Class 600 flanges, it provides a secure seal for pipes up to 3 inches in size. The gasket's graphite filler and stainless steel winding ensure excellent chemical resistance and durability, withstanding temperatures from -300°F to 1,200°F. Suitable for use in industries such as oil and gas, chemical processing, and power generation, this gasket offers long-lasting performance and minimizes the risk of leaks and downtime. Its compact design and easy installation make it an ideal choice for a wide range of applications.
Top product features:
- Spiral winding material made of stainless steel Grade 304 for resistance to corrosion and durability.
- Graphite filler material provides chemical resistance and sealing properties.
- Thickness of 3/16 inch allows for effective sealing and pressure resistance in high-temperature applications.
Top product applications:
- Chemical Processing
- High-Temperature Pipe Connections
- Power Generation
Spiral Wound Flange Gasket, For Flange ANSI Class 600, For Pipe Size 3 in, Inside Diameter 4 in, Outside Diameter 5 7/8 in, Thickness 3/16 in, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -300 Degrees F, Maximum Operating Temperature 1,200 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Stainless Steel Grade Not Applicable, Standards ASME B16.21, Resistance Properties Chemical-Resistant
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 6.00
- Package Height: 0.20
- Package Weight: 0.43
Product info last updated on February 14, 2026 7:13pm UTC
Category: Sealing and Gasketing
