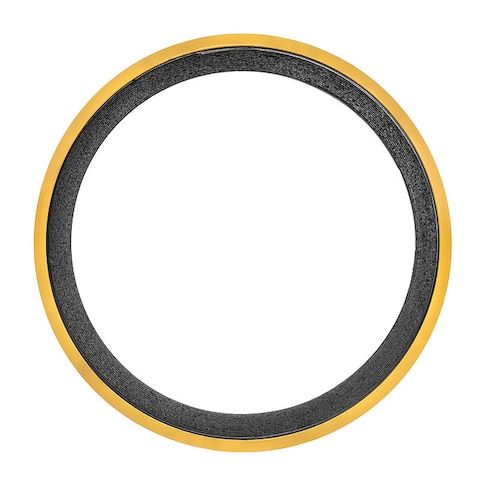

Spiral Wound Gasket with PTFE Filler, 1", 1/8" Thick, No 300 MPN:BULK-FG-2041
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2438346
Spiral Wound Gasket with PTFE Filler, 1", 1/8" Thick, No 300
This Spiral Wound Gasket with PTFE Filler is designed for use with ANSI Class 300 flanges, providing a reliable seal for industrial applications. The PTFE filler material offers excellent chemical resistance and non-stick properties, while the stainless steel spiral winding ensures durability and resistance to corrosion. Suitable for use in extreme temperatures from -300°F to 1200°F, this gasket is ideal for applications in the chemical, oil and gas, and power generation industries, including flanges, valves, and piping systems. Its compact size and ease of installation make it a convenient solution for a wide range of industrial needs.
Top product features:
- Spiral wound design provides a tight seal for flanges.
- PTFE filler material offers high-temperature resistance and chemical inertness.
- Stainless steel spiral winding and outer ring provide corrosion resistance and durability.
Top product applications:
- High-Pressure Industrial Piping Systems
- Chemical Processing Plants
- Power Generation Facilities
Spiral Wound Flange Gasket, For Flange ANSI Class 300, For Pipe Size 1 in, Inside Diameter 1 1/4 in, Outside Diameter 2 7/8 in, Thickness 3/16 in, Filler Material PTFE, Outer Ring Material Carbon Steel, Minimum Operating Temperature -300 Degrees F, Maximum Operating Temperature 1,200 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 304, Inner Ring Stainless Steel Grade Not Applicable, Standards ASME B16.20, Market Industrial, System of Measurement Inch
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.20
- Package Width: 3.40
- Package Height: 3.40
- Package Weight: 0.20
Product info last updated on February 27, 2026 3:11am UTC
Category: Sealing and Gasketing
